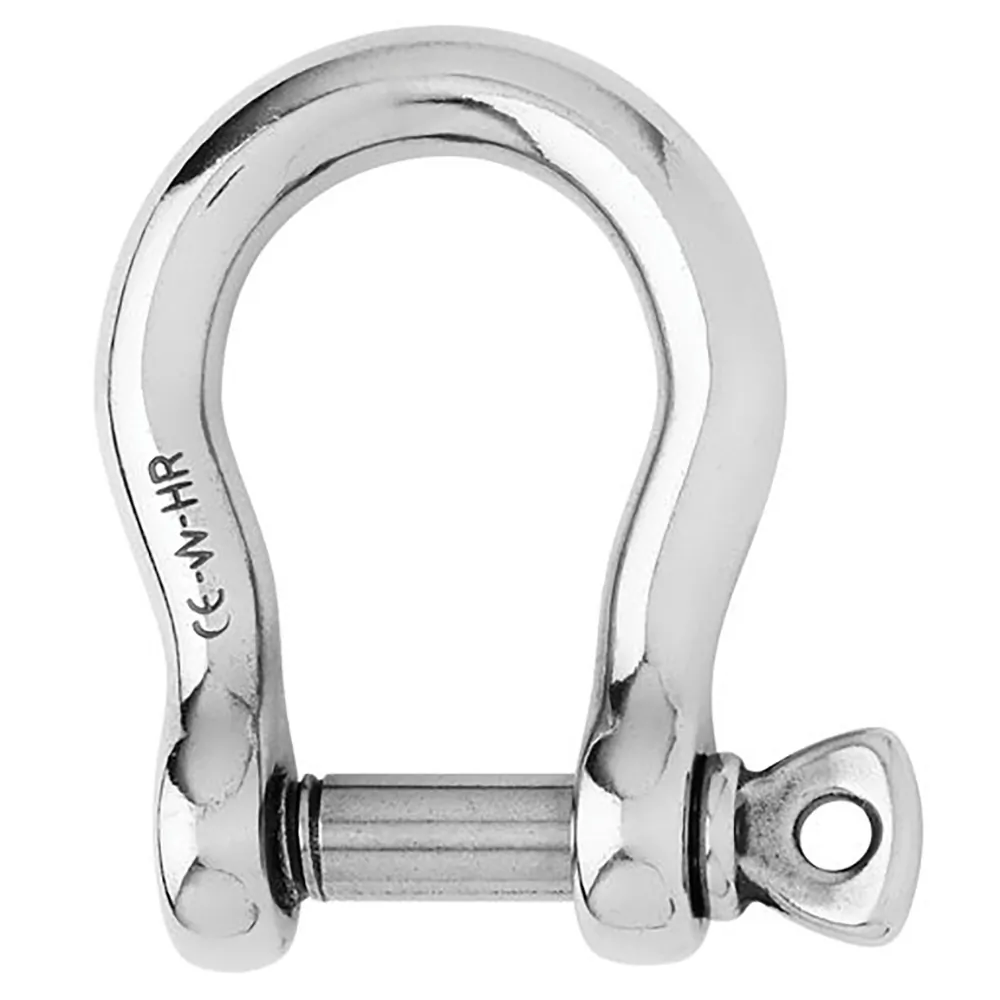

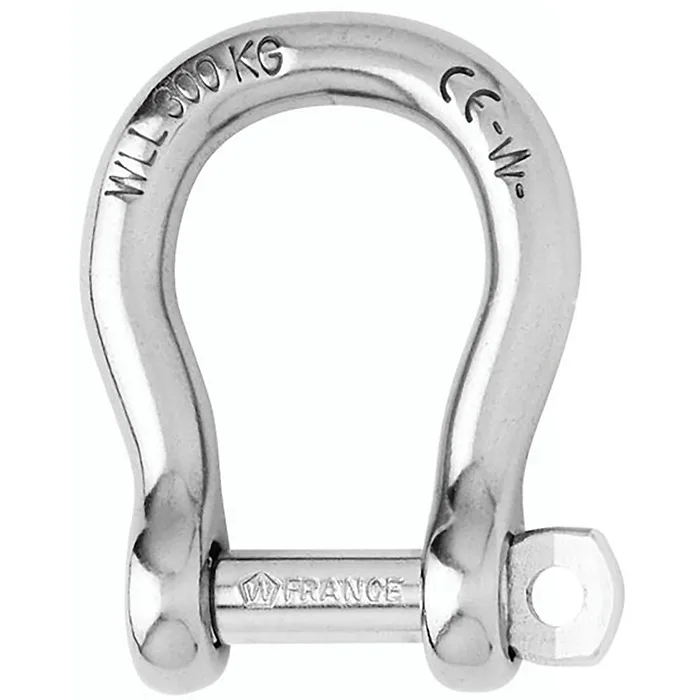

Wichard Not Self-Locking Bow Shackle - 16mm Diameter - 5/8"

MFG No: 01247
SKU No: W4K1J88ACU
MFG. Name: Wichard Marine
Available: 4
Condition: New

$188.71


Non-Locking Bow Shackle - 16mm Diameter - 5/8"

Overview: This bow shackle is designed for industrial applications and crafted from high-quality 316L stainless steel, ensuring durability and resistance to corrosion. Features a secure pin system that prevents loosening caused by vibrations.

Applications: Ideal for situations where ample space is required and capable of attaching multiple lines or cables.

Specifications:

  • Materials: 316 stainless steel grade
  • Working Load: 7050 lb (3200 kg)
  • Working Load Limit: 4400 lb (2000 kg)
  • Breaking Load: 22040 lb (10000 kg)
  • Weight: 1.19 lb (540 g)

Dimensions:

  • A: 2 3/4" (70 mm)
  • B: 1 17/64" (32 mm)
  • C: 35/64" (14 mm)
  • D: 1 17/64" (14 mm)
  • D diameter: 5/8" (16 mm)
  • E: 19/32" (15 mm)
  • M: 3 11/32" (85 mm)

  • Forged in grade 316L stainless steel for durability
  • Pin locked into one of the indentations to prevent loosening
  • Outstanding working and breaking loads
  • CE marked for compliance
  • Designed for industrial applications only
