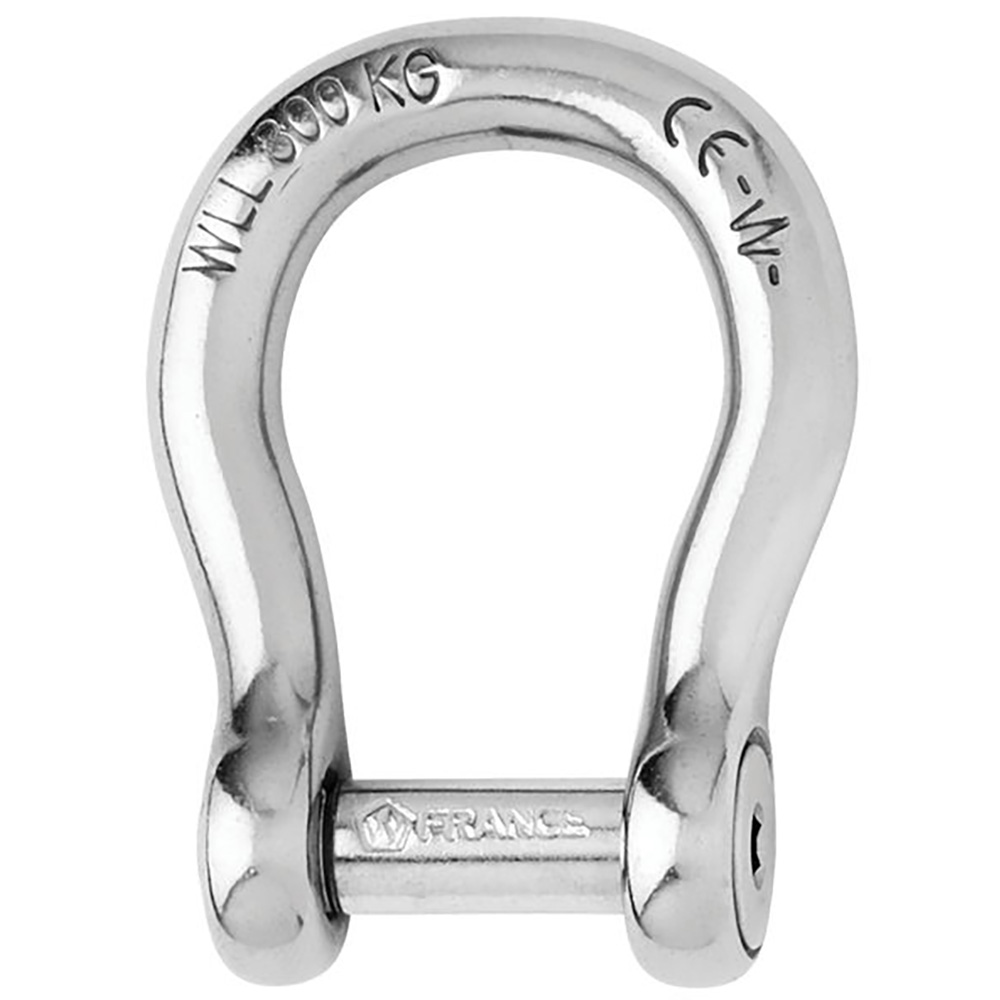

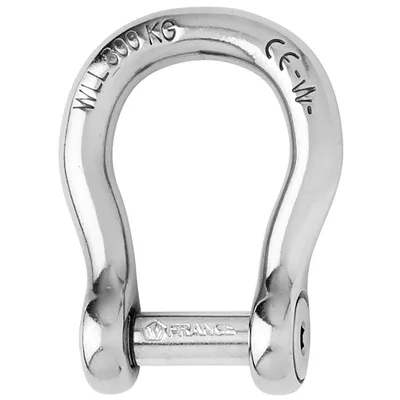

Wichard 12mm Self-Locking Bow Shackle with Allen Head Pin

The Wichard Self-Locking Bow Shackle is engineered for exceptional strength and security in demanding industrial applications. Designed with a convenient allen head pin, this shackle is forged from grade 316L stainless steel, making it resilient against corrosion.

Key Benefits:

• Self-locking design ensures the pin remains secure.
• Flush pin head eliminates snagging risk.
• Engineered to prevent loosening from vibrations.
• Outstanding working and breaking loads for safety.

Applications:

• Perfect for linking chains and anchors.
• Reduces potential damage to sails on the halyard.
• Ideal for use in tight spaces or where ample room is essential.

Specifications:

• Material: 316 stainless steel grade
• Working Load: 4580 lb (2080 kg)
• Working Load Limit: 2640 lb (1200 kg)
• Breaking Load: 13220 lb (6000 kg)
• Weight: 0.489 lb (222 g)

Dimensions:

• A: 2 11/64" (55 mm)
• B: 1 1/16" (27 mm)
• C: 15/32" (12 mm)
• D: 15/16" (24 mm)
• E: 25/64" (10 mm)
• F: 1 1/2" (38 mm)
• M: 2 31/64" (63 mm)

*Sold as an Individual

• Self-locking twisted shackle with allen head pin.
• Forged from robust grade 316L stainless steel.
• Prevents snagging with flush pin design.
• Vibration-resistant locking mechanism.
• High working and breaking load capacities.
• CE marked for compliance.
