Wichard Self-Locking Allen Head Pin D Shackle - 8mm Diameter - 5/16"

MFG No: 01304
SKU No: WCAC1KMLI7
MFG. Name: Wichard Marine
Available: 4
Condition: New

$43.46

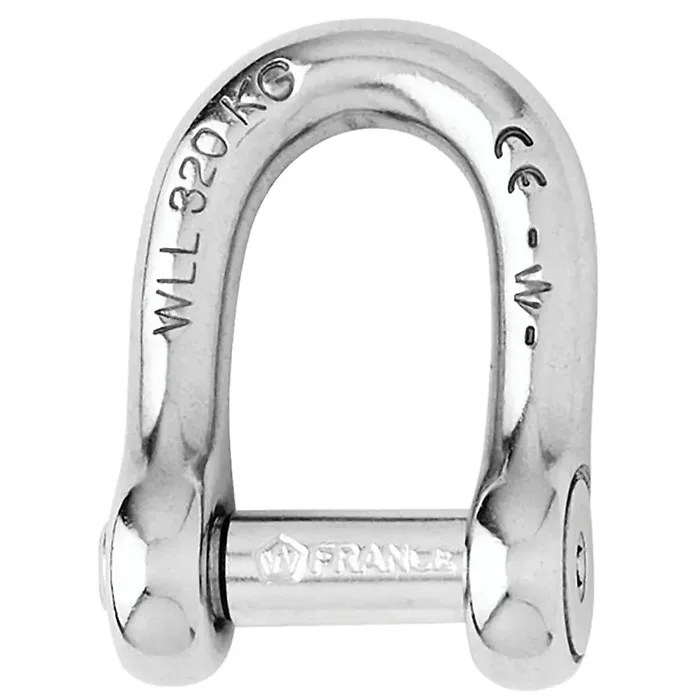

8mm Self-Locking D Shackle with Allen Head Pin

Features:

  • Constructed from grade 316L stainless steel for durability
  • Self-locking design prevents accidental opening
  • Low-profile pin design minimizes snag hazards
  • Vibration-resistant to ensure security during use
  • Designed for outstanding working and breaking loads
  • CE marked for compliance with safety standards

Applications:

  • Connects chains and anchors securely
  • Ideal for halyards, protecting sails from damage
  • Optimized for use in tight spaces

Specifications:

  • Materials: Grade 316 stainless steel
  • Working Load: 2110 lb (960 kg)
  • Working Load Limit (WLL): 1190 lb (540 kg)
  • Breaking Load: 5950 lb (2700 kg)
  • Weight: 0.117 lb (53 g)

Dimensions:

  • A: 1 1/32" (26 mm)
  • B: 5/8" (16 mm)
  • C: 5/16" (8 mm)
  • D: 5/8" (16 mm)
  • D diameter: 5/16" (8 mm)
  • E: 9/32" (7 mm)
  • F: 1 13/16" (46 mm)
  • G: 1 19/64" (33 mm)

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial use only; safety factor is 5 times the breaking load.

*Sold as an individual item.


  • Self-locking mechanism
  • Allen head pin design
  • Grade 316L stainless steel construction
  • Compact and snag-free profile
  • High durability with excellent load ratings
