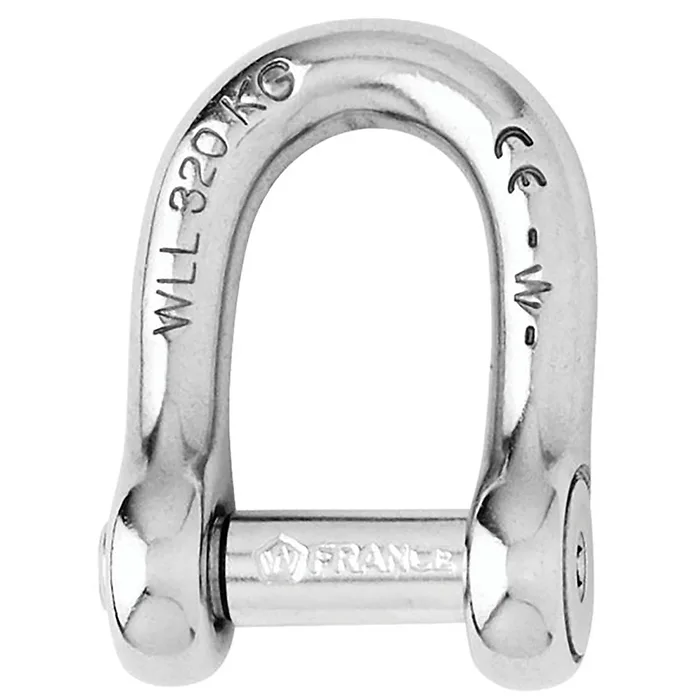

Self-Locking D Shackle - 10mm Diameter - 13/32"

Overview: This self-locking D shackle features an Allen head pin made from grade 316L stainless steel, ensuring durability and strength for various applications.

Features:

• Self-locking mechanism with Allen head pin for secure closure
• Pin locks into indentations, minimizing the risk of accidental opening
• Flush pin design eliminates snagging hazards
• Designed to withstand vibrations without loosening
• High working and breaking loads for reliable performance
• Certified for industrial applications (lifting, etc.)
• CE marked for quality assurance

Applications:

• Suitable for linking chains and anchors
• Protects sails when used on halyards
• Ideal for situations with reduced clutter

Specifications:

• Material: Grade 316 stainless steel
• Working load: 3170 lb (1440 kg)
• WLL: 1890 lb (860 kg)
• Breaking load: 9470 lb (4300 kg)
• Weight: 0.218 lb (99 g)

Dimensions:

• A: 1 19/64" (33 mm)
• B: 25/32" (20 mm)
• C: 25/64" (10 mm)
• D: 3/4" (19 mm)
• D diameter: 25/64" (10 mm)
• E: 23/64" (9 mm)
• F: 2 1/4" (57 mm)
• G: 1 39/64" (41 mm)

Notes:

• Working Load (WL): Suitable for nautical applications.
• Working Load Limit (WLL): For industrial use only, calculated with a safety factor of 5 times the breaking load.

*Sold as an individual item.

• Grade 316L stainless steel construction
• Allan head pin for secure locking
• Flush design to prevent snagging
• High resistance to vibration loosening
• Certified for industrial lifting
