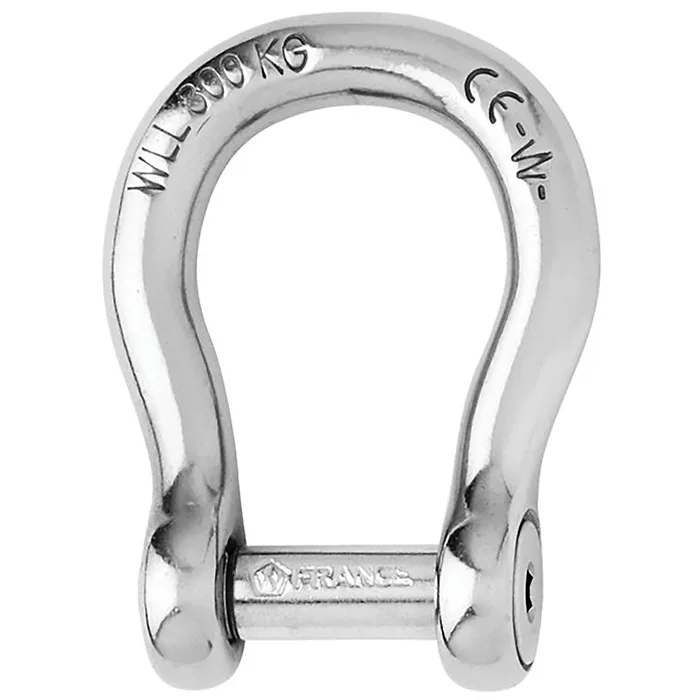

Wichard 10mm Self-Locking Bow Shackle with Allen Head Pin

This self-locking bow shackle is designed for enhanced safety and reliability in industrial applications. Made from high-quality 316L stainless steel, it features an allen head pin that securely locks into place without protruding, reducing the risk of snagging and loosening from vibrations.

Applications:

• Ideal for linking chain and anchor systems
• Protects sails when used on halyards
• Perfect for environments where clutter is minimized
• Requires ample space for operation

Specifications:

• Working Load: 3170 lb (1440 kg)
• Working Load Limit (WLL): 1890 lb (860 kg)
• Breaking Load: 9470 lb (4300 kg)
• Weight: 0.293 lb (133 g)

Dimensions:

• A: 1 27/32" (47 mm)
• B: 25/32" (20 mm)
• C: 25/64" (10 mm)
• D: 25/32" (20 mm)
• D diameter: 25/64" (10 mm)
• E: 23/64" (9 mm)
• F: 1 17/64" (32 mm)
• M: 2 3/064" (52 mm)

• Self-locking design for enhanced security
• Constructed from durable 316L stainless steel
• Allen head pin prevents snagging and loosening
• Exceptional working and breaking loads for reliability
• CE marked for compliance and safety
