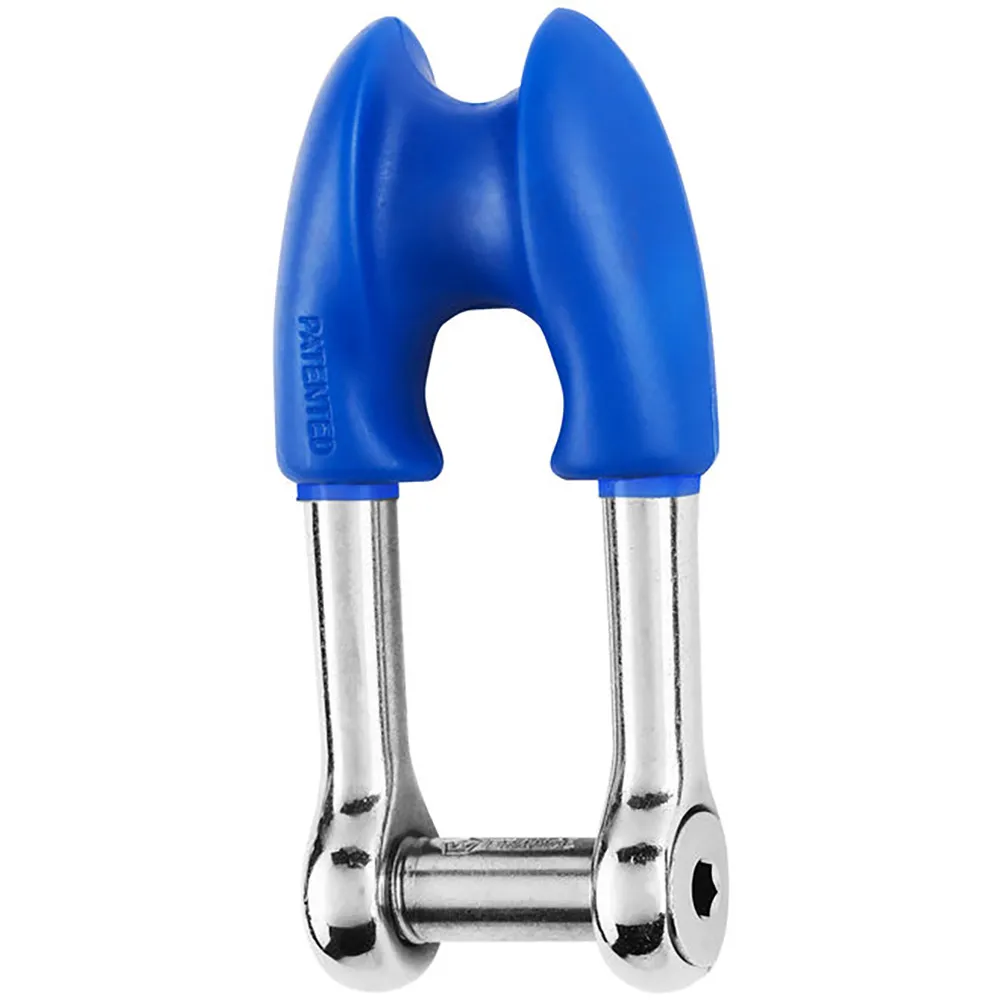

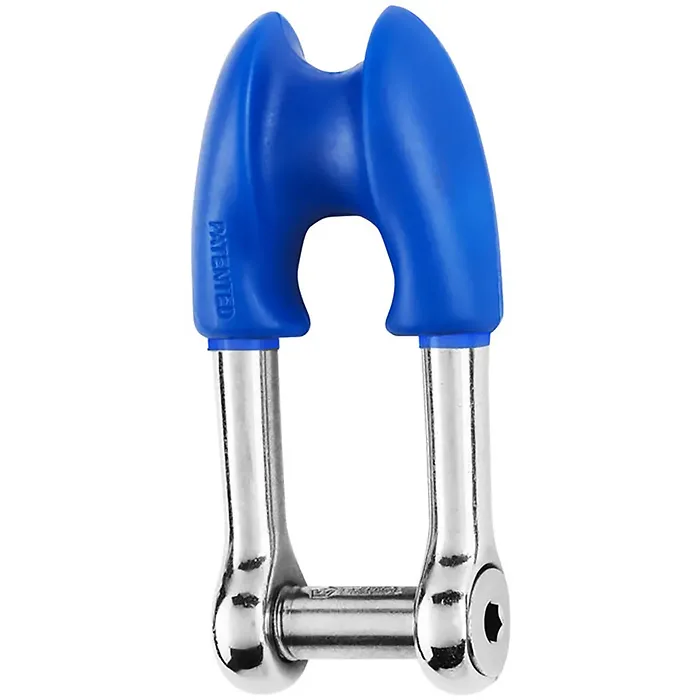

Wichard 8mm Thimble Shackle with Allen Head Pin

The Wichard Thimble Shackle features a robust design forged from grade 316L stainless steel, ensuring durability and resistance against corrosion. This innovative shackle allows for splicing a rope without the need for an additional thimble, making it a convenient choice for various nautical applications.

Applications:

• Ideal for mainsheet halyards
• Supports maximum rope size of 12 mm

Specifications:

• Working load: 2200 lb (1000 kg)
• Breaking load: 6610 lb (3000 kg)
• Weight: 0.168 lb (76 g)

Dimensions:

• A: 1 39/64" (41 mm)
• B: 5/8" (16 mm)
• C: 5/16" (8 mm)
• D: 5/8" (16 mm)
• E: 9/32" (7 mm)
• F: 2 63/64" (76 mm)
• G: 1 19/64" (33 mm)

Note: Working Load (WL) is suitable for nautical applications, while Working Load Limit (WLL) is intended for industrial use only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5.

*Sold as an Individual

• Forged in grade 316L stainless steel, ensuring durability
• Allows splicing of ropes without needing an additional thimble
• Captive pin design prevents loss of the pin
• Exceptional working and breaking load ratings
