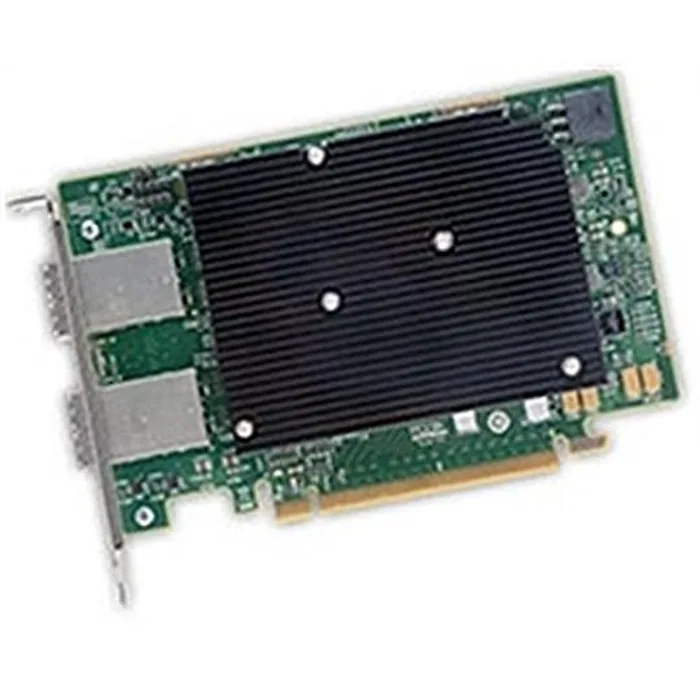

For server and storage systems needing maximum throughput, the SAS 9302-16e HBA delivers up to 2.8 million input-output operations per second. Using two SAS 3008 12Gb/s SAS controllers with a 16 lane PCI Express 3.0 interface gives Avago the highest performing HBA.Features:•Connects up to 1024 SAS and SATA devices with 16 external 12Gb/s SAS ports•Provides maximum connectivity and performance for external JBOD and external RAID enclosures•Supports critical application with the bandwidth of a 16 lane PCIe 3.0 connectivity•Achieves up to 2.8 million IOPS for performance-sensitive applications.LifecycleActiveHost Bus Typex16 Lane PCI Express 2.0Devices Supported1024 Non-RAID SATA/SATA Device Per ControllerExternal Connectors4 Mini-SAS HD SFF8644Operating Temperature0 C to 55 COperating Voltage+12V +/-8%, 3.3V +/-9%OS SupportMicrosoft Windows, Linux (SuSE , Red Hat), Solaris, VMware , FreeBSD See the downloads page for details on versions The HBA supports Solaris 10 and Oracle provides a built in driver installation of an LSI driver is not required. For more informationPCI Power30WCable SupportPassive Copper, Active OpticalI/O Controller2 SAS 3008MTBF>1,500,000 HoursOperating Humidity5% to 90% Non-CondensingBracketsFull HeightRegulatory CertificationsAustralia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), Japan (V-3/02.04), Korea (N-B 2-0001-404), RoHS, Safety: EN60950, WEEEData Transfer Rates12Gb/s SAS-3 CompliantItem Dimension (L"xW"xH")6 x 11 x 2Weight1.00 lbWarranty Information3 Years
Lifecycle
Active Host Bus Type
x16 Lane PCI Express 2.0 Devices Supported
1024 Non-RAID SATA/SATA Device Per Controller External Connectors
4 Mini-SAS HD SFF8644 Operating Temperature
0 C to 55 C Operating Voltage
+12V +/-8%, 3.3V +/-9% OS Support
Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware , FreeBSD See the downloads page for details on versions The HBA supports Solaris 10 and Oracle provides a built in driver installation of an LSI driver is not required. For more information PCI Power
30W Cable Support
Passive Copper, Active Optical I/O Controller
2 SAS 3008 MTBF
>1,500,000 Hours Operating Humidity
5% to 90% Non-Condensing Brackets
Full Height Regulatory Certifications
Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), Japan (V-3/02.04), Korea (N-B 2-0001-404), RoHS, Safety: EN60950, WEEE Data Transfer Rates
12Gb/s SAS-3 Compliant Item Dimension (L"xW"xH")
6 x 11 x 2

Weight
1.00 lb

Warranty Information
3 Years
