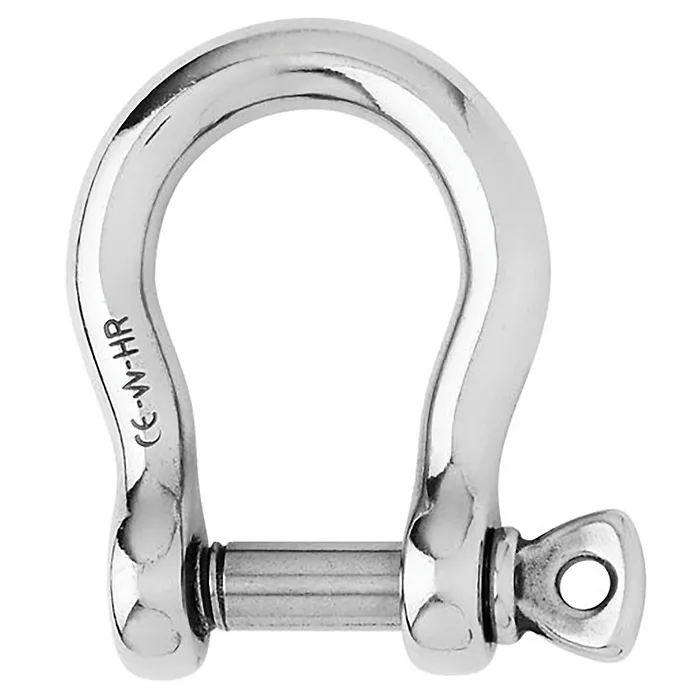

HR Bow Shackle - 20mm Diameter - WLL 8800kg

Product Overview:

The Wichard HR Bow Shackle is crafted from high-quality HR stainless steel (17-4 PH), ensuring exceptional strength and resistance. This shackle is designed for industrial applications, suitable for handling heavy loads while providing a reliable connection for cables and lines.

Features:

• Constructed from forged HR stainless steel grade (17-4 PH).
• Superior working load limit and breaking load capabilities.
• Up to 60% more resistant than standard 316L stainless steel shackles.
• Working Load Limit (WLL) specifically for industrial use (lifting purposes).
• CE marking for compliance and safety assurance.

Applications:

• Ideal for high load applications.
• Suitable for tasks requiring ample room to maneuver.
• Facilitates the attachment of multiple lines or cables.
• Not intended for mooring applications.

Specifications:

• Materials: HR 17-4 PH stainless steel.
• Working Load: 19400 lb (8800 kg).
• WLL: 12340 lb (5600 kg).
• Breaking Load: 61720 lb (28000 kg).
• Weight: 2.229 lb (1.011 kg).

Dimensions:

• A: 3 5/32" (80 mm).
• B: 1 37/64" (40 mm).
• C: 25/32" (20 mm).
• D: 1 37/64" (40 mm).
• D diameter: 25/32" (20 mm).
• E: 45/64" (18 mm).
• M: 3 15/16" (100 mm).

Caption:

• Working Load (WL): For nautical applications.
• Working Load Limit (WLL): For industrial purposes only. Safety factor is 5 times the breaking load: WLL = Breaking load / 5.
• High Resistance (HR) design.

*Sold as an individual unit.

• Forged design enhances strength and stability.
• High resistance stainless steel for increased longevity.
• High weight capacity for demanding industrial tasks.
• CE marked for safety and regulatory compliance.
• Versatile use in various lifting scenarios.
