Blue Sea MaxiBus 250A BusBar Two 5/16in-18 Studs and Six #10-24 Screws

Name: 2128 Blue Sea MaxiBus 250A BusBar Two 5/16in-18 Studs and Six #10-24 Screws
Brand: Blue Sea Systems
SKU: GKERR61GFS
Price: 44.21 USD
Availability: InStock

MFG No: 2128
SKU No: GKERR61GFS
UPC: 632085021283
MFG. Name: Blue Sea Systems
Available: 15
Condition: New

$28.46

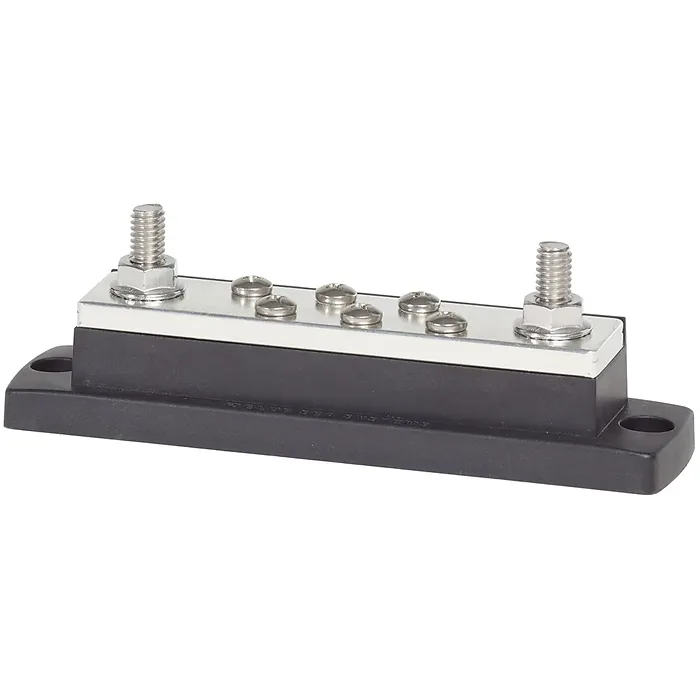

Blue Sea Systems MaxiBus 250A BusBar - Two 5/16"-18 Studs and Six #10-24 Screws

Model: 2128-BSS

Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
Raised bus provides easy access to multiple wires on a single stud
UL 94-V0 rated base material resists high heat
Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces

Specifications

Maximum Voltage	300V AC, 48V DC
Number of Screw Terminals	6
Number of Terminal Studs	2
Terminal Type	#10-24 Screw, 5/16"-18 Stud
Continuous Rating	250A
Base Material	UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material	Tin-Plated Copper CDA 110 / UNS 11000
Recommended Screw Torque	23 in-lb (2.6 N m)
Recommended Stud Torque	132 in-lb (14.91 N m)
