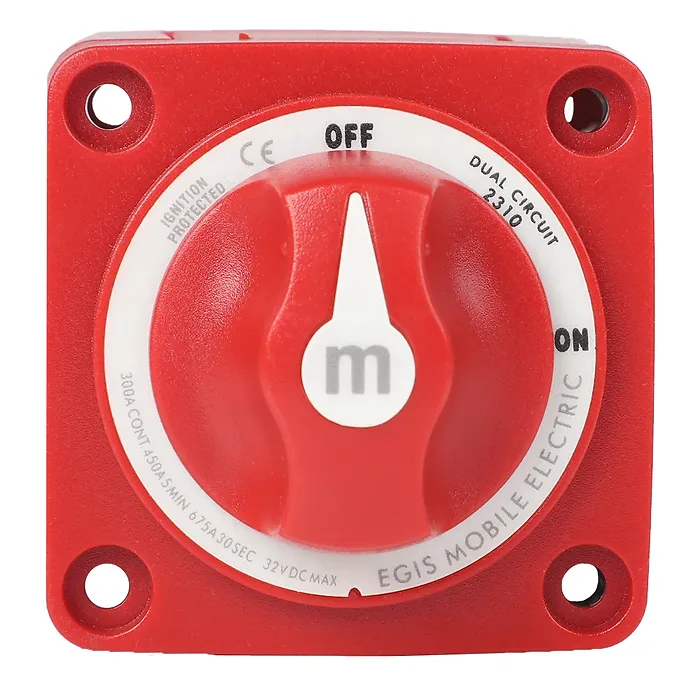

Egis 300A Waterproof Battery Switch

This high-performance battery switch is designed for dual circuits, ensuring reliable operation even in harsh environments. Its sealed design provides protection against dust and water, making it ideal for marine and automotive applications.

Equipped with ignition protection, this switch is safe for installation in closed compartments where explosive gases may be present. The serrated flange lock nuts enhance resistance to loosening in high-vibration conditions.

With flexible mounting options, the Egis battery switch can accommodate various installation types, making it versatile for any project. Built with stainless steel hardware and high-temperature materials, it's engineered to withstand demanding conditions.

Specifications:

• Maximum Voltage (Single Circuit): 48 Vdc
• Maximum Voltage (Selector / Dual Circuit): 32 Vdc
• Stud Size And Thread: 3/8”-16
• Terminal Stud Torque: 120 in-lbs (13.6 N-m)
• Ring Terminal Size Acceptance: 3/8” (M10)
• Mounting Holes: #10 Screw
• Live Switching Rating: 25 Amps
• Ignition Protection Rating: SAE J1171 / ISO 8846
• Bulkhead / Panel - Mounting Hole Size: 2-5/8" / 2-5/16"
• Cable Size to Meet Rating: 4/0 AWG

• Dust and water-resistant design
• Ignition protected for safety
• Resistant to high-vibration loosening
• Versatile mounting configurations
• Durable stainless steel construction
