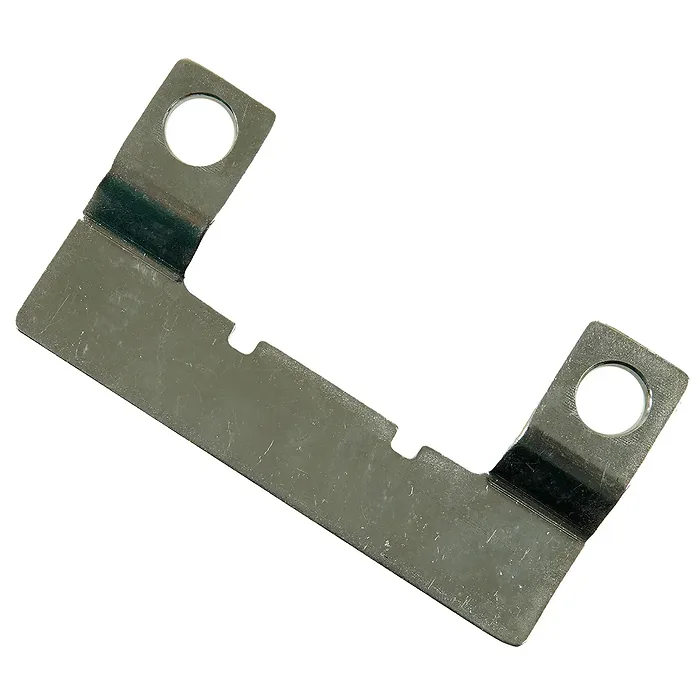

Egis XD Relay Cross-Over Bus Bar with Insulation

The Egis XD Relay Cross-Over Bus Bar is designed to connect Egis XD Single, Dual, and Triple relays efficiently, facilitating flexible configurations, including connections to the Egis 8700 Mechanical Disconnect. This product enhances installation compactness and improves circuit switching along with battery management capabilities.

Key Features:

• Constructed from tin-plated copper for optimal circuit connectivity and long-lasting anti-corrosive properties.
• Incorporates robust protective insulation to prevent accidental short circuits between XD relays.

Specifications:

• Continuous Current (Amps): 500
• Max Voltage (VDC): 72
• Material: Tin-plated copper
• Size (L x W): 90 x 47mm
• Thickness: 2.8mm (1/8")
• Terminal Stud Hole Size: 10.5mm (3/8”)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

• Tin-Plated Copper construction for reliability
• Robust insulation to prevent accidental contact
