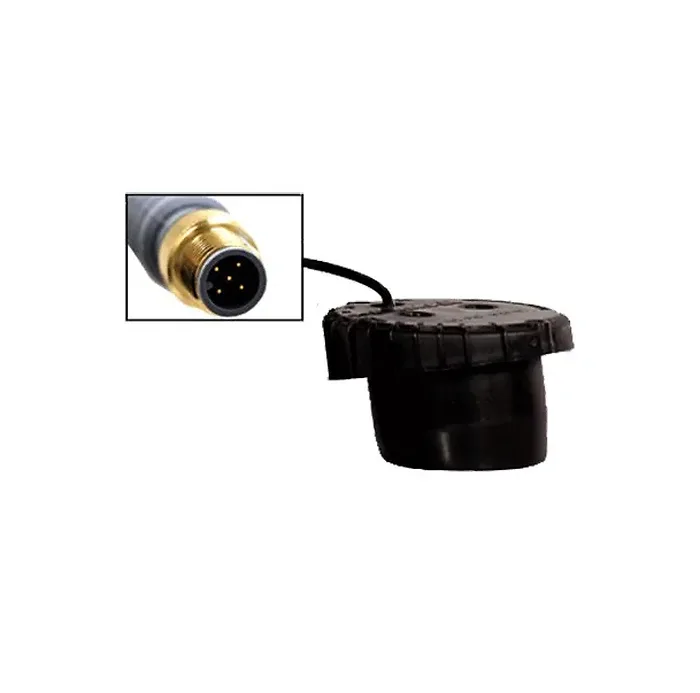

The Furuno NMEA 2000 In-Hull Transducer is designed for dependable performance and features a robust design suitable for marine conditions.

With a frequency of 235kHz and a range capability of up to 150m, this transducer ensures accurate depth readings and reliable data updates.

Its compact design makes it ideal for a variety of vessels with minimal hull interference.

• Weight: 0.9 kg (2 lb)
• Acoustic Window: Layered plastic urethane
• Hull Deadrise: 0° to 22°
• Data Update Rate: 1 per second
• Minimum Depth Range: 0.5 m (1.6 ft)
• Maximum Depth Range: Up to 150 m (500 ft)
• Pressure Rating: 3 m (10 ft)
• Pulse Rate: 20,000 p/nm (5.6 Hz per knot)
• Supply Voltage: 9 VDC to 16 VDC
• Supply Current: 200 mA
• Cable Length: 6 m (20 ft) device net
• NMEA 2000 Load Equivalency Number: 4
• CE Regulation: Complies to IERC945
