Blue Sea Panel Enclosure Dual 120v AC 30A ELCI Main Surface Mount System

Name: 3117-BSS Blue Sea Panel Enclosure Dual 120v AC 30A ELCI Main Surface Mount System
Brand: NAVICO GROUP AMERICAS LLC
SKU: KEGAA0JDZC
Price: 828.84 USD
Availability: InStock

MFG No: 3117-BSS
SKU No: KEGAA0JDZC
UPC: 632085031176
MFG. Name: NAVICO GROUP AMERICAS LLC
Available: 2
Condition: New

$828.84

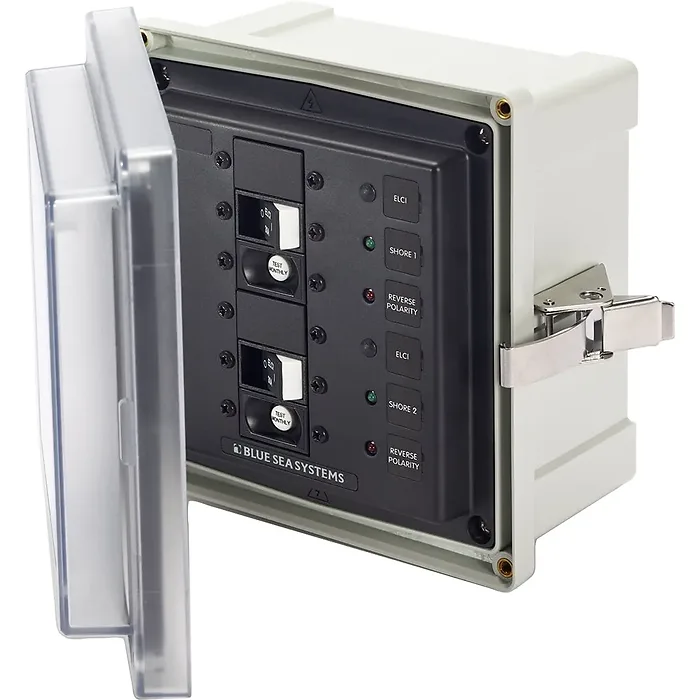

Blue Sea SMS Surface Mount System Panel Enclosure - 2 x 120V AC / 30A ELCI Main

Model: 3117-BSS

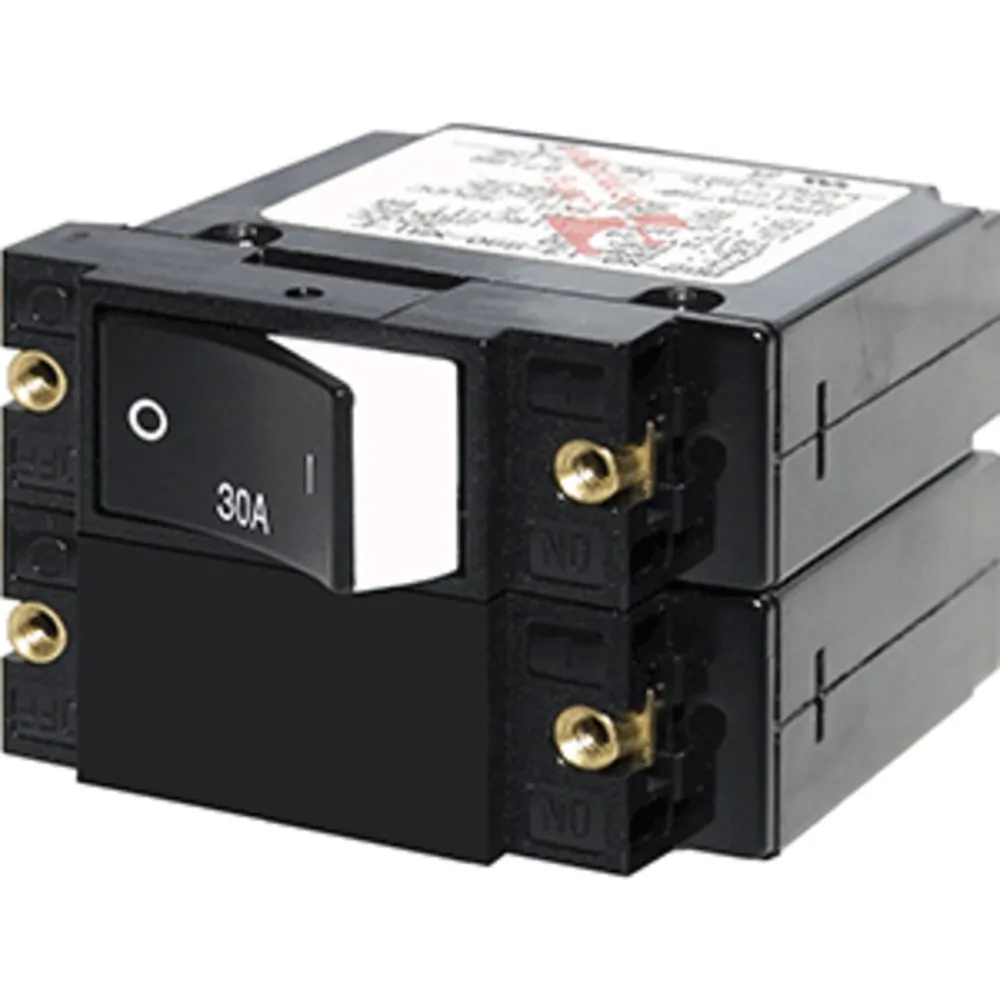

Includes one Dual 120V AC / 30A ELCI Main
Glass filled polycarbonate mounting box
Clear cover allows easy view of circuit breaker status
Overlapping cover for strength and increased gasket protection
Oversized, formed in place seamless PUR gasket
Easily removable stainless steel hinge pin for unobstructed installation
Stainless steel latch secures cover without penetrating the enclosure
Stainless steel mounting hardware included
Includes waterproof glands
LED lights for back lighting and ON indication

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Specifications
Minimum Operating Temperature

-40 deg C
Maximum Operating Temperature	85 deg C
Cover Screws and Hardware	10-32 Stainless Steel
Enclosure Size	6.0 x 6.0 in x 4.0 in (152mm x 152mm x 102mm)
Exterior Overall Dimensions	7.6 in x 7.4 in x 4.7 in (192mm x 188mm x 120mm)
Mounting Hardware	1/4 in Diameter
