Trident A2 5/8" Fuel & Vent Line Hose - Black - Per Foot

This high-quality Trident 5/8” A2 Fuel Hose is designed for gasoline vent applications (including ethanol blends) and diesel fuel (including biodiesel blends). Crafted with a premium formulation, this hose offers exceptional resistance to fuel, fire, aging, and environmental factors.

Features:

• Available for purchase by the foot
• Outstanding resistance to aging, fire, heat, cold, and ozone
• Excellent flexibility for easy installation
• NMMA Type Accepted and CE certified

Applications:

• Ideal for use as a fuel hose in vent and diesel distribution
• Compatible with all marine fuels, including gasoline, alcohol blends, diesel, and biodiesel

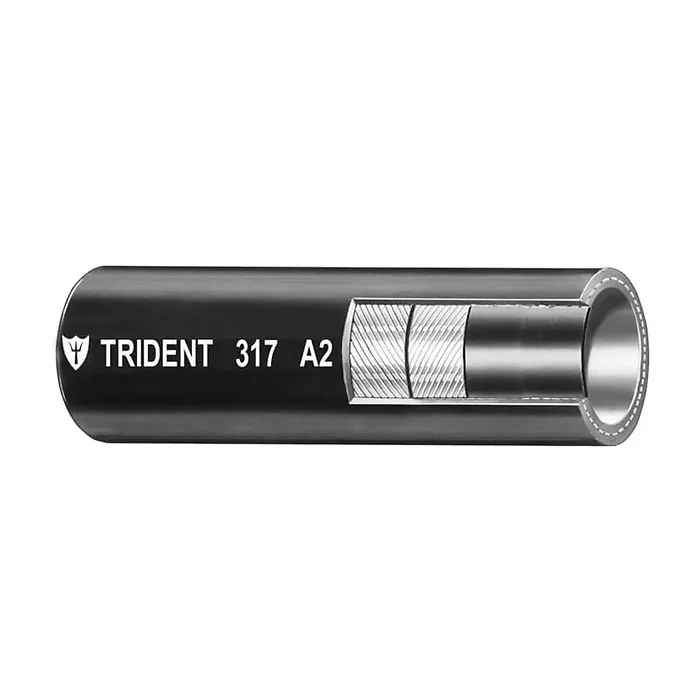

Construction:

• Tube: Nylon Internal Barrier, NBR
• Cover: NBR/PVC Blend
• Reinforcement: Polyester 2 spiral
• Temperature Range: -20°F to 212°F (-28°C to 100°C)

Specifications:

• Inner Diameter: 5/8" (15.9 mm)
• Outer Diameter: 0.960" (24.4 mm)
• Burst Pressure: 200 psi (1.38 mpa)
• Working Pressure: 50 psi (0.34 mpa)
• Bend Radius: 3" (76.2 mm)
• Weight: 25.84 lb/100 ft. (11.72 kg/m)

*The #317 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2

• Available by the foot for customizable lengths
• Superior resistance to harsh conditions
• Highly flexible for tight spaces
• Certified for marine safety standards
