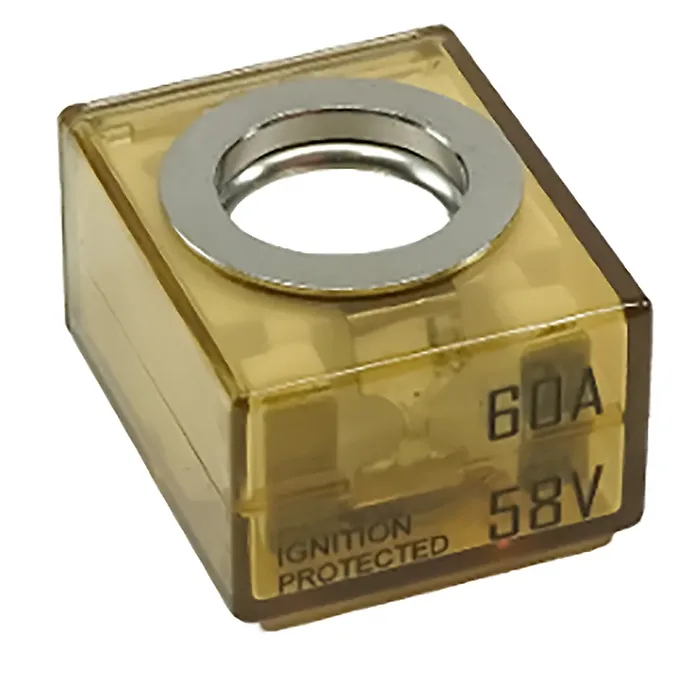

MRBF Terminal Fuse - 60 Amp

• Transparent design for easy visual indication of fuse status
• Ignition-protected, meeting SAE/J1171 and ISO8846 standards
• High interrupt rating meets ABYC requirements for DC main circuit protection in large battery banks
• Color-coded for simple identification of amperage rating

Features:

• Protects electrical circuits from short circuit events and overcurrent loads, preventing overheating and damage to wire insulation.
• High interrupt current rating provides safe protection for circuits connected to large paralleled battery banks.
• Ignition protected for safe installation in compartments with potentially explosive gases. Designed to withstand harsh environments with shock and vibration resistance, suitable for marine and vehicle electrical systems.
• Sealed against dust and water intrusion for reliable circuit protection throughout the life of the electrical installation.
• 58 Vdc rating supports applications with nominal voltages of 12 to 48V.
• 4-Year warranty reflecting our commitment to high-quality and dependable performance.

Specifications:

• Continuous Current (Amps): 60
• Max Voltage (VDC): 58
• Interrupt Rating at 14 VDC (Amps): 10,000
• Interrupt Rating at 48Vdc (Amps): 5,000
• Interrupt Rating at 58Vdc (Amps): 2,000
• Ingress Protection: IP66
