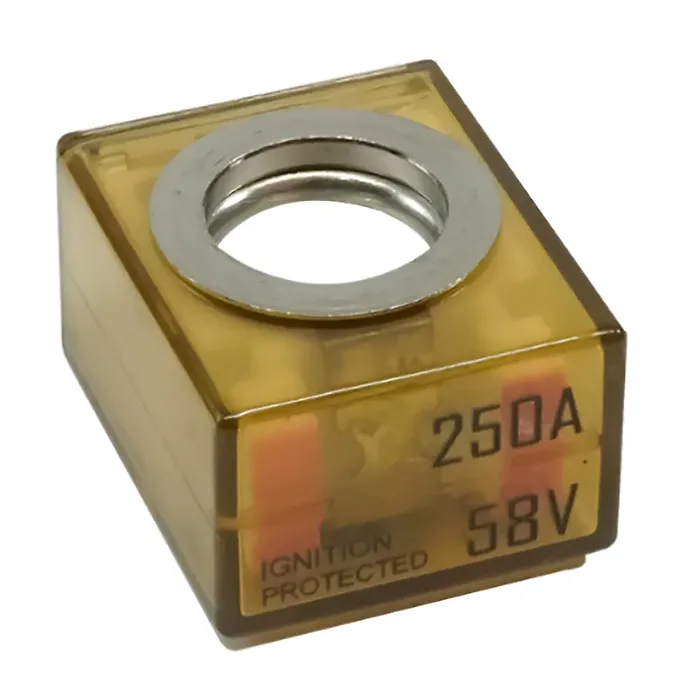

250 Amp MRBF Terminal Fuse

• Transparent design for easy visual status checking.
• Ignition protected, compliant with SAE/J1171 and ISO8846 standards.
• High interrupt rating meets ABYC requirements for DC main circuit protection on larger battery banks.
• Color-coded for easy identification of amperage rating.

Key Features:

• Protects electrical circuits from short circuit events and over-current loads, preventing wire insulation damage.
• High interrupt current rating ensures safe protection for circuits connected to large battery banks.
• Ignition protected, making it safe for installation in closed compartments with potentially explosive gases.
• Designed for harsh environments with shock and vibration resistance, ideal for marine and vehicle applications.
• Sealed against dust and water intrusion for reliable circuit protection throughout the installation's life.
• 58 Vdc rating supports 12 to 48V nominal applications easily.
• 4-year warranty backing the product performance and reliability.

Specifications:

• Continuous Current (Amps): 250
• Max Voltage (VDC): 58
• Interrupt Rating @ 14 VDC (Amps): 10,000
• Interrupt Rating @ 48 VDC (Amps): 5,000
• Interrupt Rating @ 58 VDC (Amps): 2,000
• Ingress Protection: IP66
