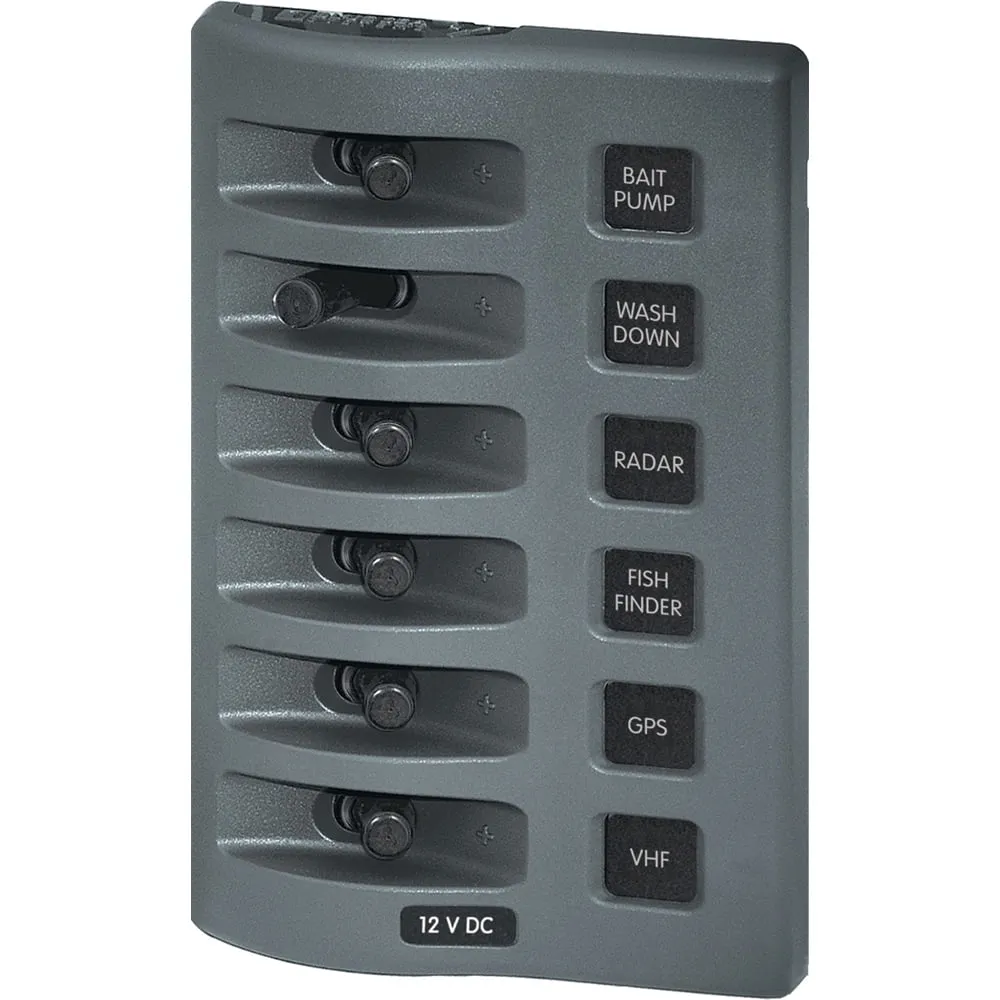

WeatherDeck™ Water Resistant Circuit Breaker Panel

Positions: 6

Color: Gray

This WeatherDeck circuit breaker panel is designed for flybridge and open cockpit applications, ensuring durability in challenging environments. Rated IP67, it offers temporary immersion protection for up to 30 minutes. The panel features independent label backlighting for easy operation in low light conditions and is compatible with all Blue Sea Systems Digital Dimmers.

Specifications:

• Weatherproof: Waterproof
• Nominal Voltage: 12v / 24v DC
• Circuit Protection: Circuit Breaker
• Maximum Amperage: 15A @ 12v DC (per circuit) / 9A @ 24v DC (per circuit)
• Panel Cumulative Rating: 45A
• Height: 6.0"
• Width: 4.25"
• Depth: 3.5"

• IP67 rated for temporary immersion
• Independent label backlighting for easy dimming
• Mountable in four orientations
• Green LEDs provide low-light readability

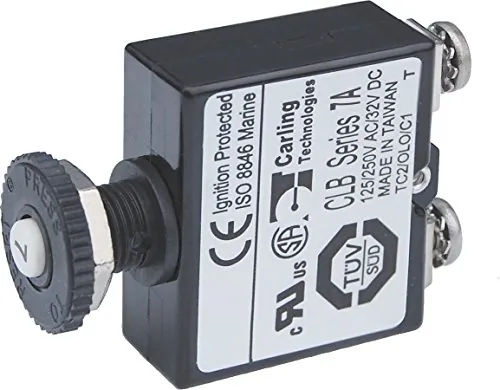

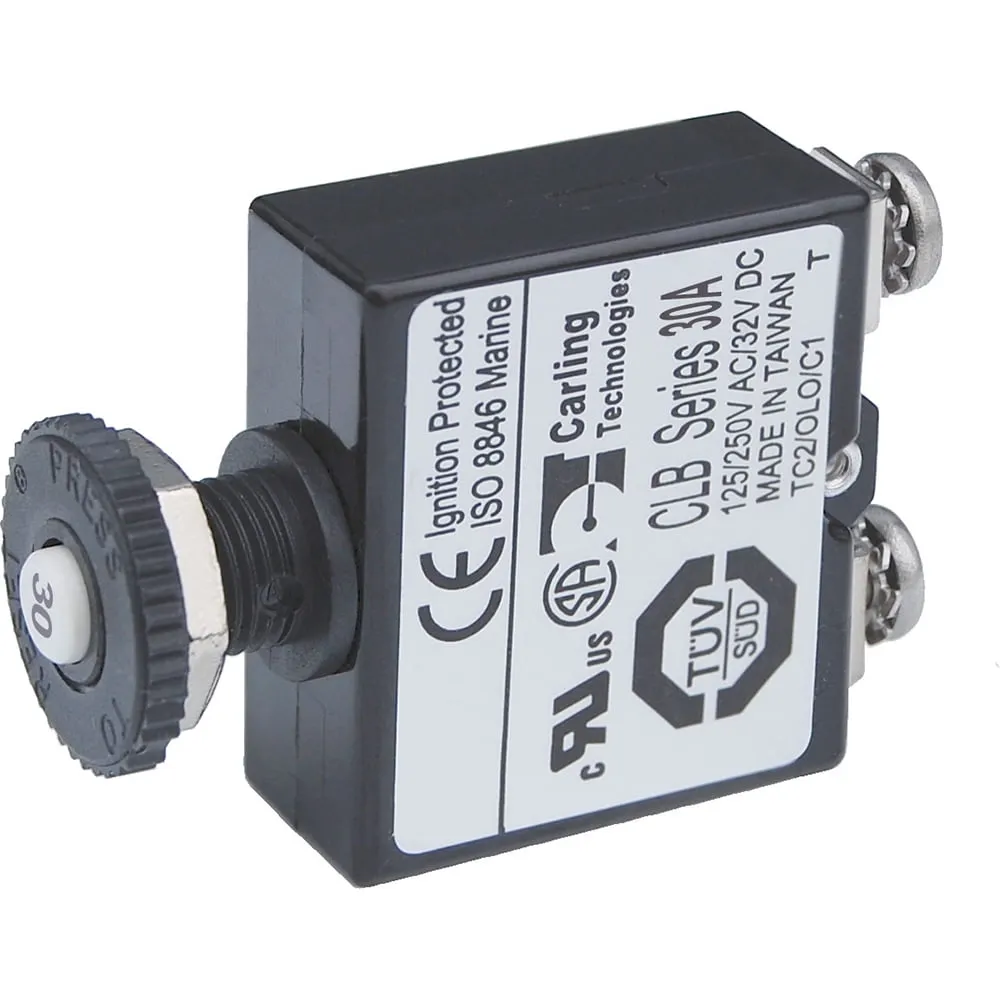

• Includes boots and push button reset breakers
