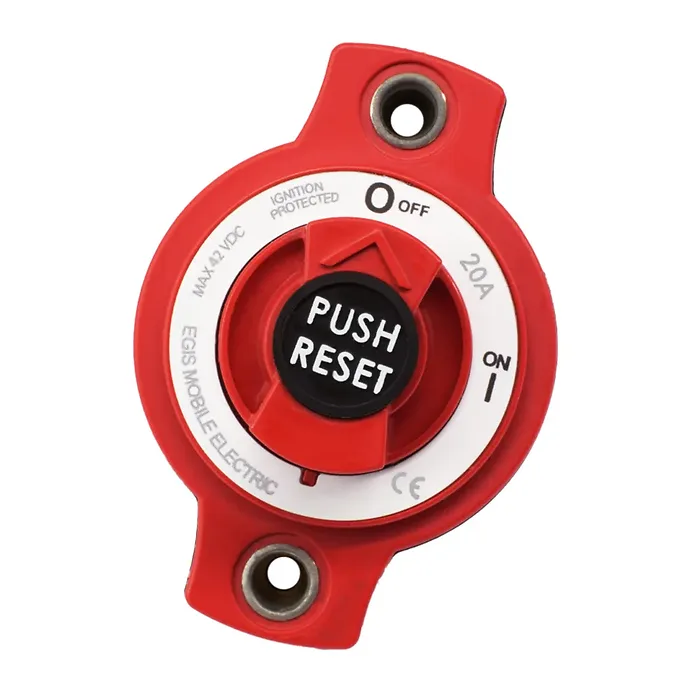

20A Compact Circuit Breaker with Integrated Disconnect Switch

This 20A Compact Circuit Breaker serves as both a circuit breaker and a disconnect switch, perfectly suited for traditional battery disconnect applications and circuit protection for trolling motors.

Applications:

• Protects electrical circuits from short-circuit incidents and over-current loads, preventing damage to wire insulation.
• Combines automatic circuit protection with manual, user-friendly on/off switching for versatile functionality.
• Facilitates circuit isolation and maintenance by offering convenient switching and integral protection, adaptable for battery systems in various locations.

Specifications:

• Continuous Current Amps: 20
• Max Voltage: 42
• CE Marked: Yes
• Interrupt Current @14 VDC (Amps): 3,000
• Cycle Switching Endurance: 5,000
• Ingress Protection Rating: IP66

Focal Features:

• Easy ON/OFF Rotary Switch: User-friendly operation and clear switch position indication.
• Stainless Steel Self-Locking Hardware: Offers corrosion and vibration resistance for rugged environments.
• Weatherproof Construction: Designed to prevent dust and moisture infiltration, suitable for high temperatures.
• Compact Design: Maximizes circuit protection capabilities within a smaller panel footprint.
• Proudly Made in the USA: Crafted from high-quality components in the USA.
• Ignition Protected: Helps prevent accidental shorts between positive terminals and grounded surfaces.
