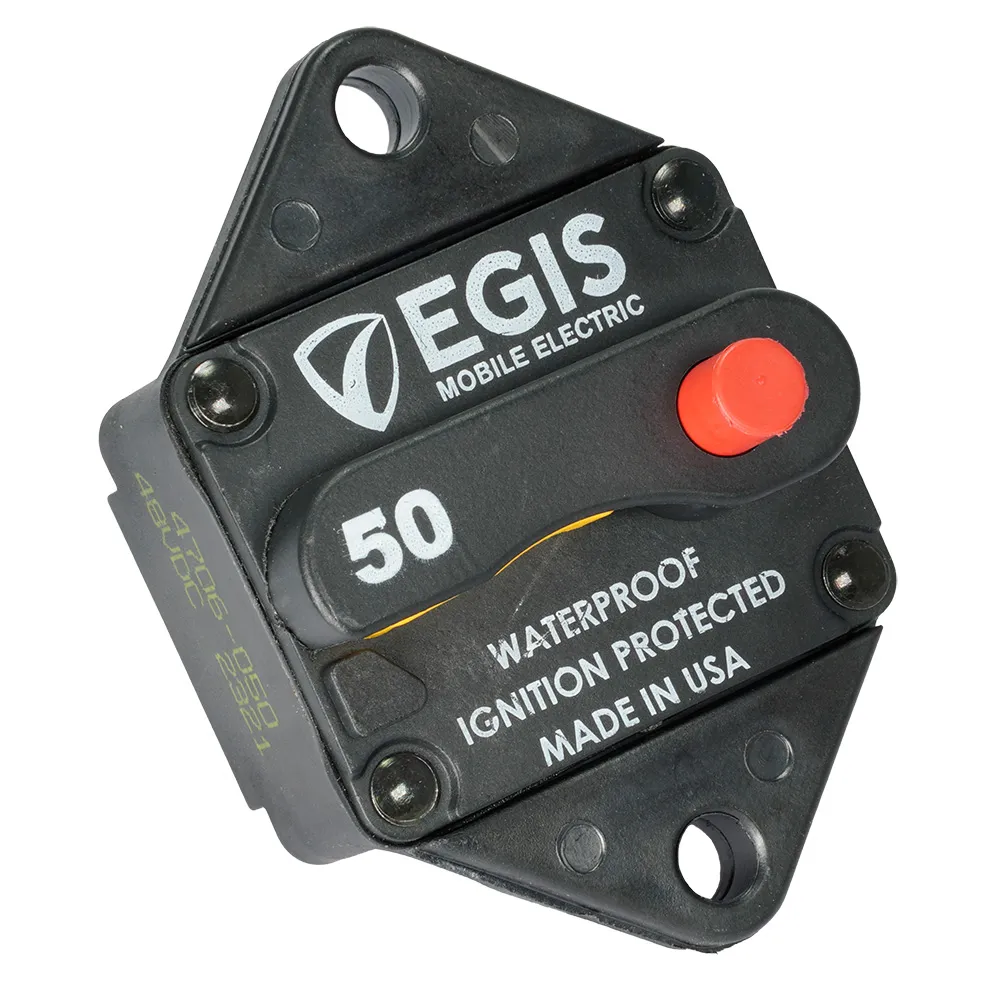

50A Panel Mount Circuit Breaker & Disconnect Switch

This dual-function 50A panel mount circuit breaker serves as both a circuit breaker and a disconnect switch. Primarily designed for trolling motor applications, it provides essential circuit protection and reliable battery disconnect switching.

Applications:

• Protects electrical systems from damage caused by short circuits and over-current conditions.
• Combines automatic circuit protection with manual on/off capability for enhanced functionality.
• Facilitates circuit isolation and maintenance near battery systems, regardless of location.

Features:

• IP66 rated for dust and water protection, ensuring long-lasting circuit integrity.
• Supports 12V, 24V, and 36V DC applications with a maximum voltage of 42V.
• Endures up to 2,000 manual switching cycles at full current.
• High interrupt capacity to safeguard large battery bank connections.
• Backed by a 4-year warranty for user assurance.

Specifications:

• Continuous Current: 50 Amps
• Maximum Voltage: 42 Volts
• CE Marked: Yes
• Interrupt Current @ 14 VDC: 3,000 Amps
• Cycle Switching Endurance: 3,000 cycles
• Ingress Protection Rating: IP66

Focal Features:

• Easy ON/OFF Rotary Switch: Simple to use and easily indicates switch position.
• Stainless Steel Self-Locking Hardware: Resists corrosion and vibration for durability in challenging environments.
• Weatherproof Construction: Protected against dust and moisture with high-temperature resilience.
• Compact Size: Maximizes panel space for circuit protection without bulk.
• Proudly Made in the USA: Quality components manufactured in the United States.
• Ignition Protected: Guards against unintentional shorts from positive terminals to grounded surfaces.

WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit P65Warnings.ca.gov.
