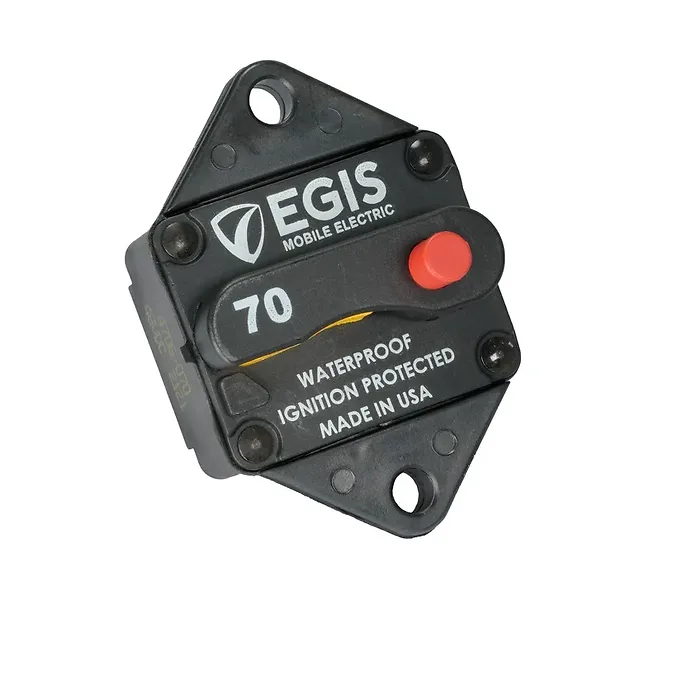

EGIS 285-Series 70 Amp Circuit Breaker Panel Mount

• ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations.
• Panel Mount Flange Provides Rear / Front panel installation options.
• Stainless Steel Hardware / KEPS Locking Nuts Corrosion and vibration resistant for harsh environment applications.
• Made in the USA of high quality components.

Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation

High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.

High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current

High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power

4 Year Warranty: We stand behind our product's ability to meet your needs.

• 70 Amp continuous current rating
• 48 Vdc maximum voltage rating
• 6,000 cycling endurance
• 5,000 amps interrupt current at 16 Vdc
• 3,000 amps interrupt current at 28 Vdc
• IP67 ingress protection rating
