Blue Sea 5502 Fuse Block ClassT 225-400A

MFG No: 5502-BSS
SKU No: BA4384R9IP
UPC: 632085055028
MFG. Name: Navico Group
Available: 34
Condition: New

$57.56

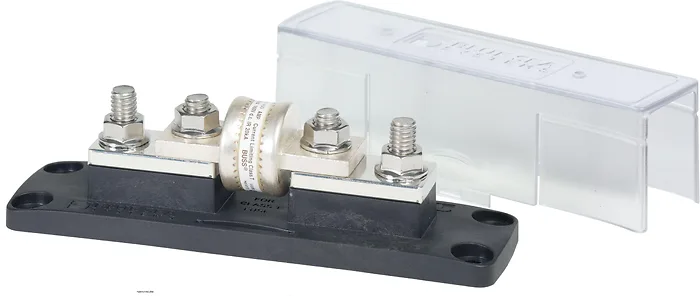

Blue Sea Systems Class T Fuse Block with Insulating Cover - 225 to 400A

Model: 5502-BSS
  • The fuse system recommended by most inverter manufacturers for high speed response to short circuits
  • Clear insulating cover, satisfies ABYC/USCG requirements
  • For use on systems up to 160 Volts DC
  • Large 3/8"-16 stud terminals accept ring terminals for wire up to 4/0 AWG
  • Large heat dissipating tin-plated copper mounting blocks
  • Fuse sold separately
Specifications
Ignition Protectedno
Maximum Amperage400A
Maximum Voltage160V DC
Fuse Mounting BlocksTin-Plated Copper
Maximum Cable Size4/0 AWG
Maximum Torque190 in-lb (21.47 Nm)
Mounting HolesAccept 1/4 (M6) Screw
Terminal Stud Size3/8" - 16 (M10)

What's in the Box:
  • Fuse Holder
  • Insulating Cover
