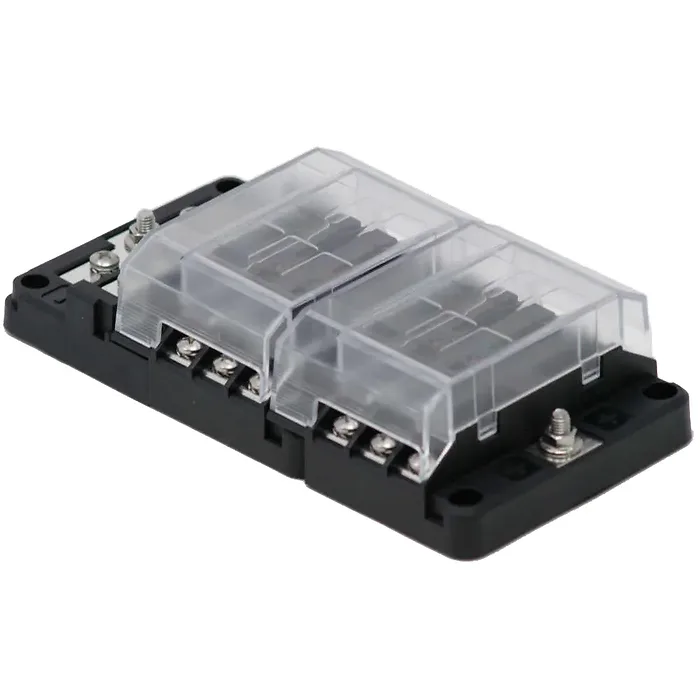

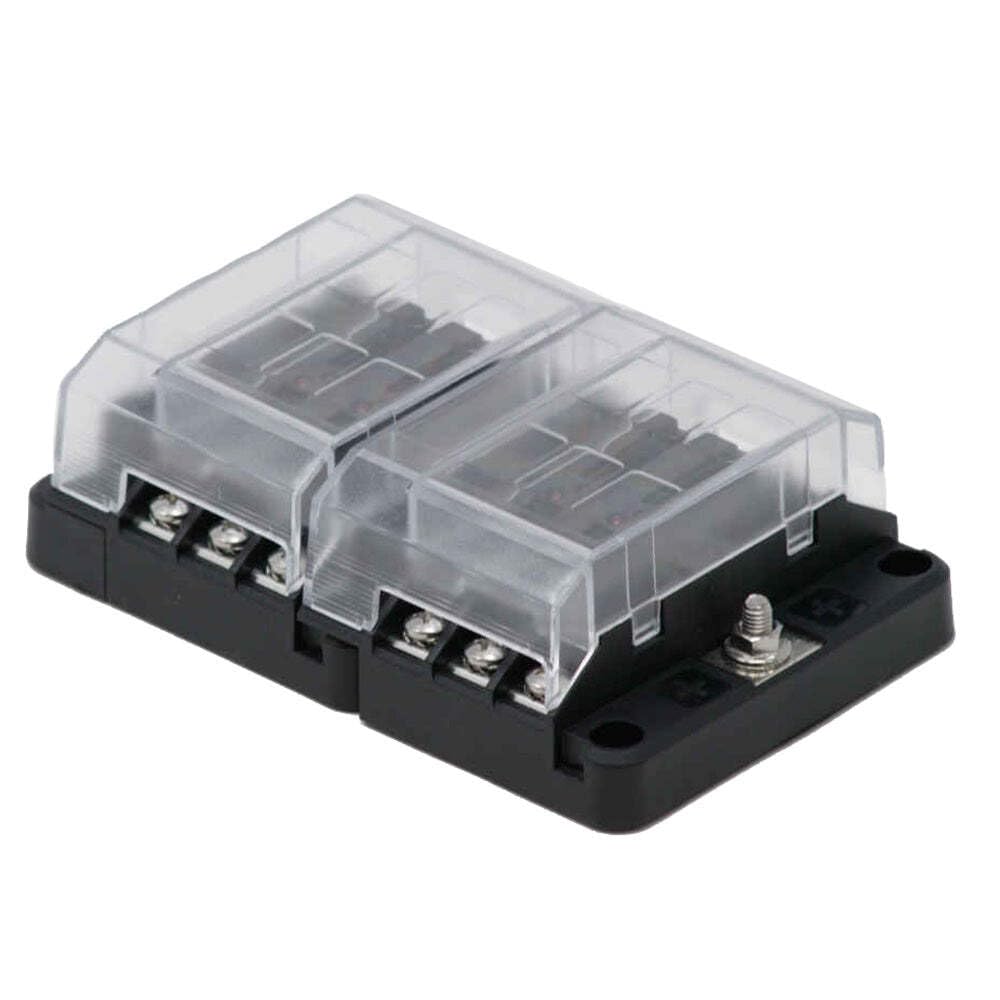

Egis 12 Position Fuse Block with Ground & LED Indicators

This versatile fuse block features 12 positions and is designed to offer reliable circuit protection with a built-in ground and LED indicators. Its modular construction allows for seven unique configurations, simplifying parts inventory and improving installation flexibility.

Applications:

• Accelerates fault corrections with blown fuse indicators, enhancing diagnostics and troubleshooting capabilities.
• Robust design for harsh environments, utilizing stainless steel and optional customized weather-proof labels.

Specifications:

• Maximum Current (Entire Block): 10 Amps
• Maximum Current (Per Circuit): 30 Amps
• Max Output Wire Size: #10 AWG
• Voltage Range: 0-36 VDC
• Fuse Compatibility: ATO, ATC, ATF
• Number of Fuse Positions: 12

• Durable Construction: Designed with high-temperature materials and resistant to corrosion, ideal for vehicle mounting.
• Fuse Protection: Accepts ATO style fuses ranging from 1 to 40 Amps to safeguard branch circuits.
• LED Diagnostic Indicators: Provides a clear visual indication of blown fuses for quick troubleshooting.
• Integrated Ground Block: Comes with a ground return block featuring multi-level low amp terminal screws for secure connections.
• Modular Design: Ground block can separate from the fuse block for adaptable deployment in restricted spaces.
