Blue Sea M-Series Battery Switch On/Off/On with Knob Black

MFG No: 6008200-BSS
SKU No: VRG73MKXFQ
UPC: 632085600822
MFG. Name: NAVICO GROUP AMERICAS LLC
Available: 5
Condition: New

$47.88


Blue Sea Systems m-Series Selector 3 Position Battery Switch - Black

Model: 6008200-BSS
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Studs accept 3/8 (M10) ring terminals
  • 7/8 in (22mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • Isolating cover with snap-on sections protects rear contacts
  • Case design allows surface or rear panel mounting
  • Waterproof - rated IP66 from water projected in powerful jets
  • One-piece stainless flange nuts ensure safe and secure connections
  • Breakout tabs allow wire access in any direction
  • Ignition protected-safe for installation aboard gasoline powered boats

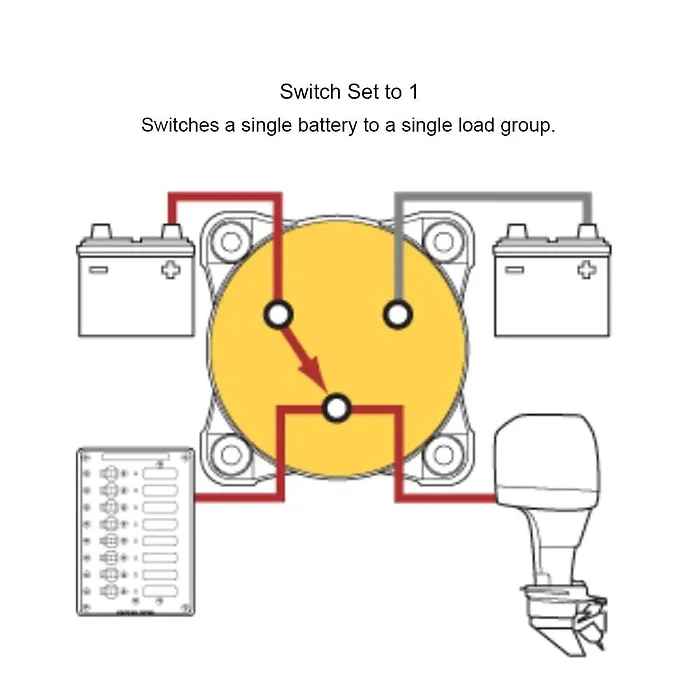

Switches a single battery to a single load group.

Specifications
Switch Type
Selector 3 Position
ColorRed
Switch Positions3
Battery CombineNo
Alternator Field DisconnectNo
Maximum Voltage32vDC
Stud Size3/8 in
Terminal Stud Torque120 in-lb (13.56 Nm)
Continuous Rating300A
Intermittent Rating500A (5 min)
Cranking Rating 30 sec900A
Battery Inputs2
Cable Clearance For 4/0 AWG Cables1.12in (28.45 mm)
Cable Size to Meet Ratings4/0 AWG (120mm2)
Mounting HolesAccept #10 Screw
Stud MaterialTinned Copper
Stud Torque120 in-lb (13.56 Nm)
Terminal Stud Size3/8 in - 16 (M10)
"
