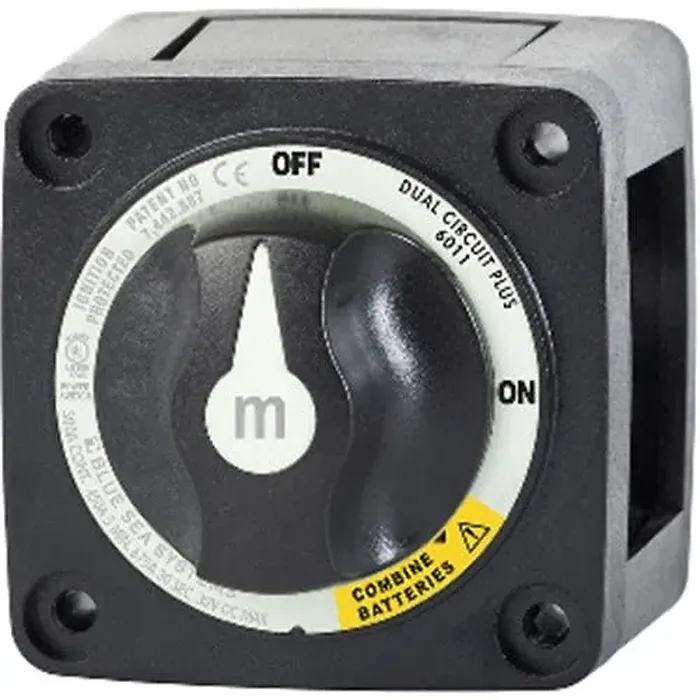

Blue Sea M-Series Battery Switch On/Off Dual Circuit Plus Black

MFG No: 6011200-BSS
SKU No: K6XA0E1CLB
UPC: 632085601126
MFG. Name: Blue Sea Systems
Available: 10
Condition: New

$35.80


Blue Sea Systems m-Series Mini Dual Circuit Plus Battery Switch - Black

Model: 6011200-BSS
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Studs accept 3/8 (M10) ring terminals
  • 7/8 in (22mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • Isolating cover with snap-on sections protects rear contacts
  • Case design allows surface or rear panel mounting
  • Waterproof - rated IP66 from water projected in powerful jets
  • One-piece stainless flange nuts ensure safe and secure connections
  • Breakout tabs allow wire access in any direction
  • Make before break contact design allows switching between battery banks without power interruption

Simultaneously switches two isolated battery banks or combines battery banks to all loads

Specifications
Switch Type
Dual Circuit Plus
ColorBlack
Switch Positions3
Battery CombineYes
Alternator Field DisconnectNo
Maximum Voltage32vDC
Stud Size3/8 in
Terminal Stud Torque120 in-lb (13.56 Nm)
Continuous Rating300A
Intermittent Rating450A (5 min)
Cranking Rating 30 sec675A
Battery Inputs2
Cable Clearance For 4/0 AWG Cables1.12in (28.45 mm)
Cable Size to Meet Ratings4/0 AWG (120mm2)
Mounting HolesAccept #10 Screw
Stud MaterialTinned Copper
Stud Torque120 in-lb (13.56 Nm)
Terminal Stud Size3/8 in - 16 (M10)
"
