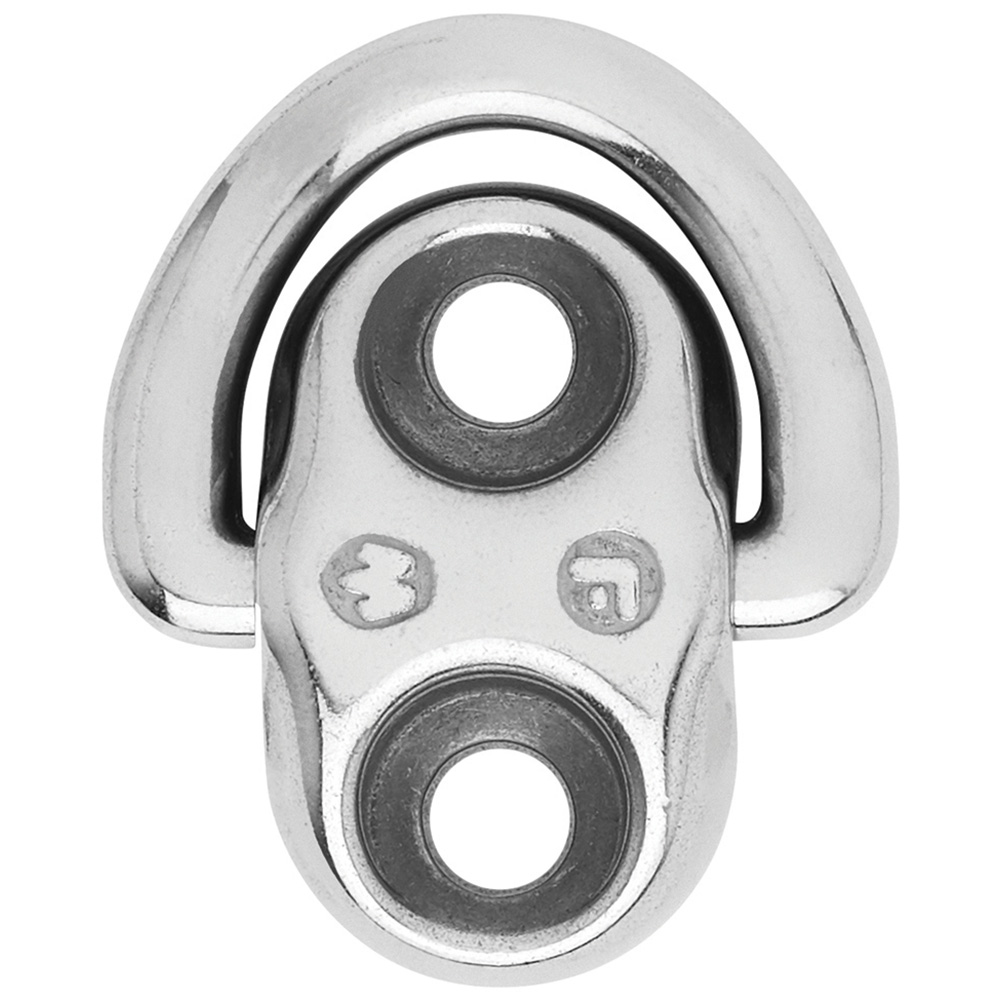

Wichard Folding Pad Eye - 15/64" with 2 Fixed Holes

Overview:

This Folding Pad Eye is crafted from high-grade 316L stainless steel, ensuring 100% safety and excellent resistance to corrosion. Its drop-forged design guarantees outstanding working and breaking loads, making it ideal for various marine applications.

Features:

• Safe and durable construction designed for marine environments.
• Optimized design that complements modern boat aesthetics.
• Folds down to reduce injury risk when not in use.
• Silicon pad helps to dampen vibrations for a more stable connection.

Applications:

• Suitable for fastening applications such as stays, blocks, jib tack points, lifelines, and more.

Specifications:

• Working Load: 1650 lb (750 kg)
• Breaking Load: 3520 lb (1600 kg)
• Weight: 0.123 lb (56 g)

Dimensions:

• A: 1 37/64" (40 mm)
• B: 59/64" (23.4 mm)
• C: 19/32" (15 mm)
• d diameter: 9/32" (7 mm)
• D diameter: 15/64" (6 mm)
• E: 1 37/64" (40 mm)

Important Notes:

• Working Load (WL) is intended for nautical applications.
• Working Load Limit (WLL) for industrial applications has a safety factor of 5 times the breaking load. WLL = Breaking Load / 5.

*Sold individually.

• 100% safe and corrosion-resistant.
• Fully drop-forged for maximum strength.
• Modern design tailored for aesthetics.
• Folds to minimize injury risks.
• Silicon pad for vibration dampening.
