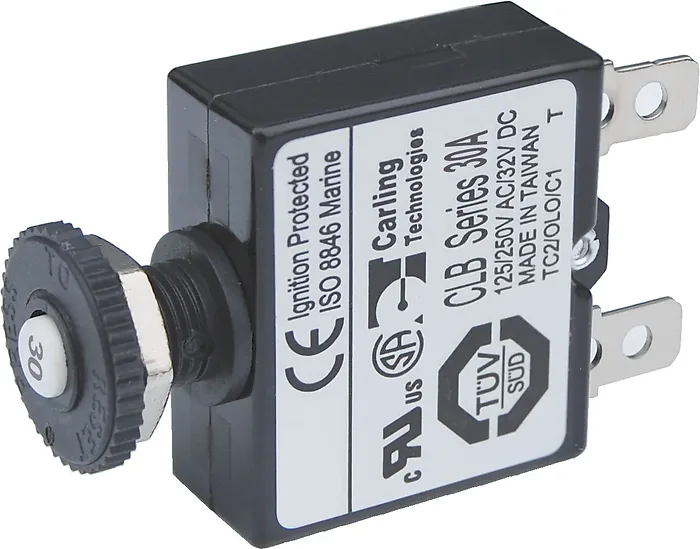

Blue Sea 30A Push Button Quick Connect Circuit Breaker

MFG No: 7059-BSS
SKU No: FDGWBA3MGC
UPC: 632085070595
MFG. Name: NAVICO GROUP AMERICAS LLC
Available: 8
Condition: New

$13.49


Blue Sea Push Button Reset Only Quick Connect Circuit Breaker - 30 Amps

Model: 7059-BSS
  • Branch circuit breakers (can also be used for 24-hour circuit protection)
  • Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
  • Compact design enables high density circuit protection configurations
  • Push-to-reset operation
  • "Trip Free" design cannot be held "ON" during fault current condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking
Specifications
Amperage
30A
Maximum Voltage32vDC
MountingPanel Mount 3/8-27 UNS
Circuit Breaker TypeThermal trip, manual push-button reset only
Terminal Type1/4 Male Quick Connect
Interrupt Capacity3000A @ 14.7V
2500A @ 28V
Minimum Operating Temperature-10 deg C
Maximum Operating Temperature60 deg C

  • Push-to-reset mechanism for easy reset
  • Panel mount design for efficient use of space
  • 30 Amp capacity, non-switchable
  • Thermal protection up to 32 VDC
  • Fits a 3/8" diameter panel opening
  • Durable construction for long-lasting performance
  • 1/4" blade quick disconnect terminals for simple wiring
