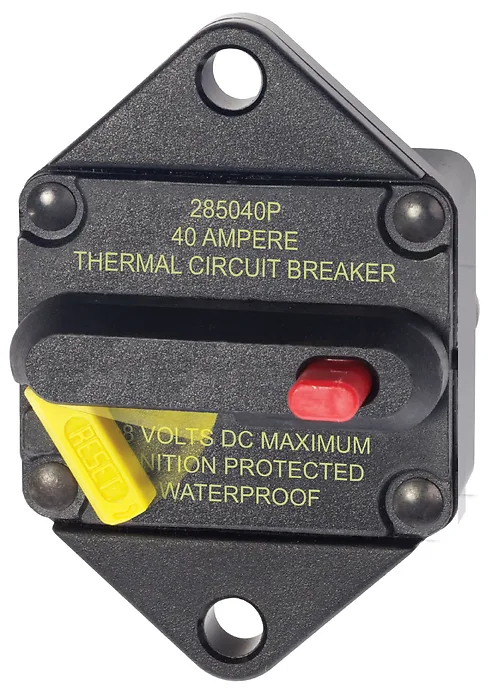

Blue Sea 285-Series 40 Amp Circuit Breaker Panel Mount

MFG No: 7082-BSS
SKU No: G5FTJV8JDZ
UPC: 632085070823
MFG. Name: Blue Sea Systems
Available: 17
Condition: New

$45.49


Ble Sea Systems 285-Series Circuit Breaker - Panel Mount 40A

Model: 7082-BSS
  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit*
  • Trip Free" - cannot be held closed after trip

* Do not use as a switch where high inrush currents are expected

Specifications
Amperage
40A
Maximum Voltage48V DC
MountingSurface Mount
Circuit Breaker TypeThermally responsive Bi-metal blade
Terminal Stud Torque60 in-lb (6.78 Nm)
Interrupt Capacity3000A @ 48V
Minimum Operating Temperature-40 deg C
Maximum Operating Temperature85 deg C
Circuit Breaker ClassType III - switchable/manual reset - trip free
Terminal StudM6 (accepts 1/4 in Ring Terminal)
"
