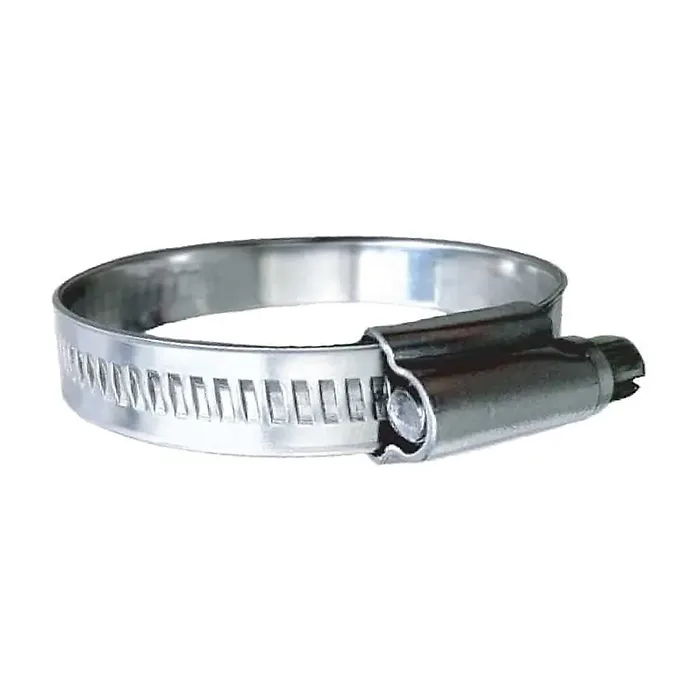

316 Stainless Steel Non-Perforated Worm Gear Hose Clamp - SAE Size 8

This premium quality hose clamp is constructed from all AISI 316 marine-grade stainless steel, ensuring high tensile strength and corrosion resistance. The 11.7 mm (0.46”) wide band is non-perforated, providing a smooth interior with rolled edges to prevent hose damage while maintaining an increased clamping force. The compact, one-piece housing design allows for one of the highest clamping force ratings available among worm gear style clamps.

Key Features:

• Screw head size: 7mm
• Designed for long service life and suitability in general-purpose hose applications

Recommendations:

• Always measure hose outer diameter before selecting the clamp size for a proper fit
• For critical applications, consider double-clamping each hose end
• For larger inner diameter hoses (like exhaust hoses), consider using our #720 series wide band 316 SS T-Bolt clamps

Construction Details:

• Band & Housing: 316 stainless steel, 11.7 mm wide band – 0.9 mm thick
• Screw Drive: 316 stainless steel with a 7.0 mm screw head

Specifications:

• SAE Size: 8
• Hose Inner Diameter: 3/8" – 1/2"
• Clamping Range: 5/8" – 15/16" (15-24 mm)
• Recommended Torque: 35-45 inch lbs

• Made from durable AISI 316 stainless steel
• Non-perforated band for reduced hose damage
• High tensile strength and long-lasting performance
• Compact design providing high clamping force
• Ideal for marine and general-purpose applications
