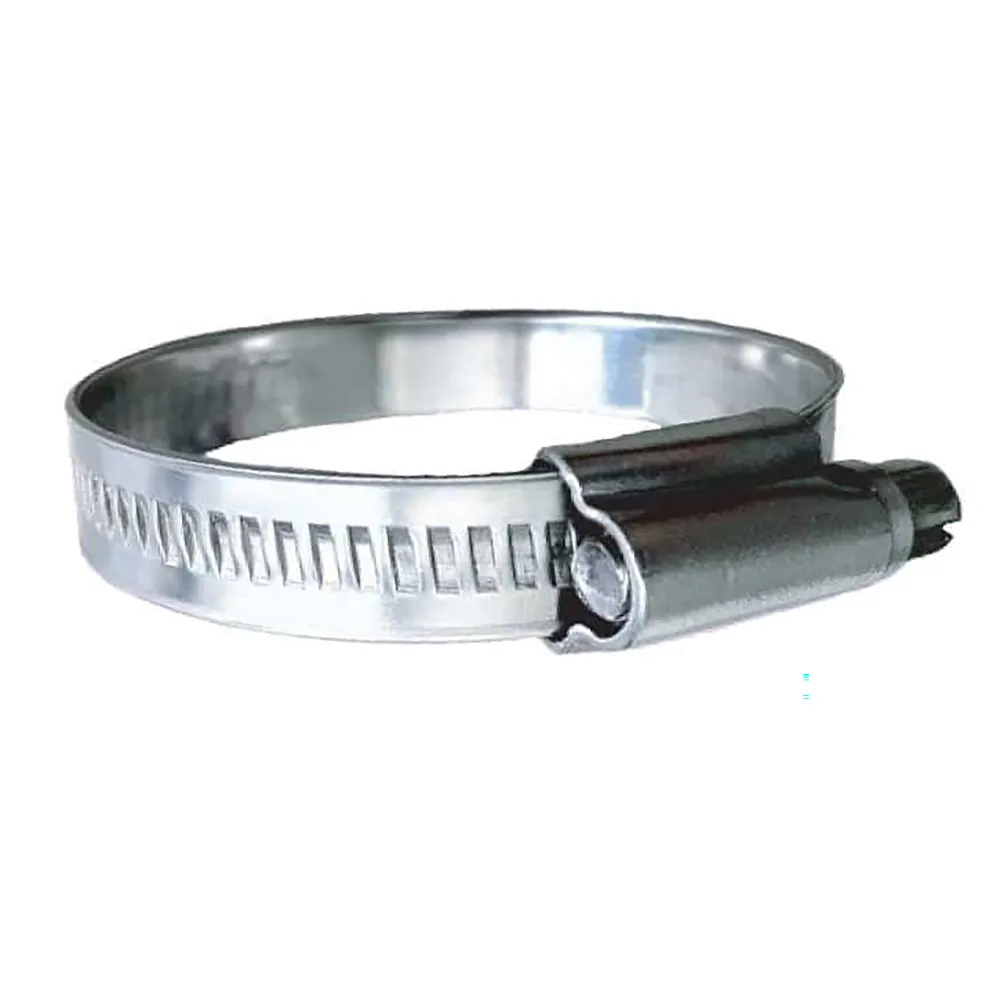

Trident Marine 316 SS Non-Perforated Worm Gear Clamp - Size 28

This premium marine-grade hose clamp features a high tensile strength construction, made entirely from AISI 316 stainless steel. With a 15/32" wide non-perforated band, it provides a smooth interior surface that minimizes hose damage while increasing clamping force. The robust, one-piece housing offers an exceptional clamping force rating, making it ideal for a variety of marine applications.

Features:

• Screw head size is 7mm for easy adjustment
• Long-lasting, reliable performance for general-purpose hose connections

Recommendations:

• Always measure the hose's outer diameter to ensure the right fit
• For critical applications, consider double clamping on each hose end
• Explore our #720 Series wide band 316 SS T-Bolt Clamps for larger inner diameter hoses

Construction:

• Band & Housing: Made from 316 Stainless Steel, 11.7 mm wide band, 0.9 mm thick
• Screw Drive: 316 Stainless Steel with a 7.0 mm screw head

Specifications:

• SAE Size: 28
• Hose Inner Diameter: 1-1/2" - 1-5/8"
• Clamping Range: 1-3/4" – 2-1/4" (44-56 mm)
• Recommended Torque: 45-60 inch lbs

• Robust construction for high tensile strength
• Non-perforated band to prevent hose damage
• Superior clamping force rating
• Long-lasting and reliable for various hose applications
• Easy to adjust with a 7mm screw head

Product Tags

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (1-3/4" – 2-1/4") Clamping Range - 10-Pack - SAE Size 28
