Humminbird XNT-9SI-180T Ducer

Transom Mount Side Imaging

Model: 710200-1

• Compatible with: 398C SI, 598ci HD SI, 698ci HD SI, 798ci SI , 798ci HD SI, 899CI HD SI, HELIX 5 SI GPS, HELIX 5 CHIRP SI GPS G2, HELIX 7 SI GPS, HELIX 7 CHIRP SI GPS G2, HELIX 7 CHIRP SI GPS G2N and HELIX 9 SI GPS
• Cable Length: 20 Feet

Compact Dual/Side Imaging. 20/60/180 degree, 200/83/455 kHz with built-in temperature. More secure, especially at high force of waves. Improved running angle and an optional lock down screw to override the kick up.

Specifications
Mount Type

Transom
Sonar Type	2D, Side Imaging
Current Models	HELIX 5, HELIX 7, HELIX 9

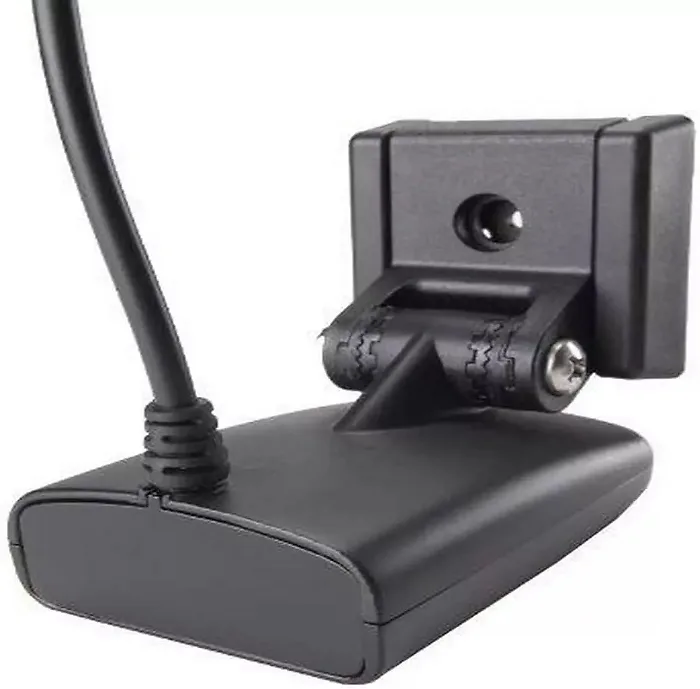

The Humminbird XNT 9 SI 180 T Transom Mount Transducer is a high-speed transducer designed to mount on the transom, or back, of the boat, in contact with the surface of the water, and operate in conjunction with a compatible Humminbird sonar or fish finder system. This unit is combination DualBeam PLUS transducer that features 20- and 74-degree cone angles operating on 200 kHz and 83 kHx frequencies respectively, as well as a side-imaging sonar with two 84-degree beams operating at 455 kHz. The XHS 9 HDSI 180 T includes a built-in temperature sensor, a 20-foot cable, and all the necessary high-speed hardware to get up and running right away. Although this unit has the same hole pattern as some older-version transducers, it utilizes a design that is more secure and less prone to kick up at the high force of waves, as well as having an improved running angle, and an optional lock-down screw to override the kick up.
