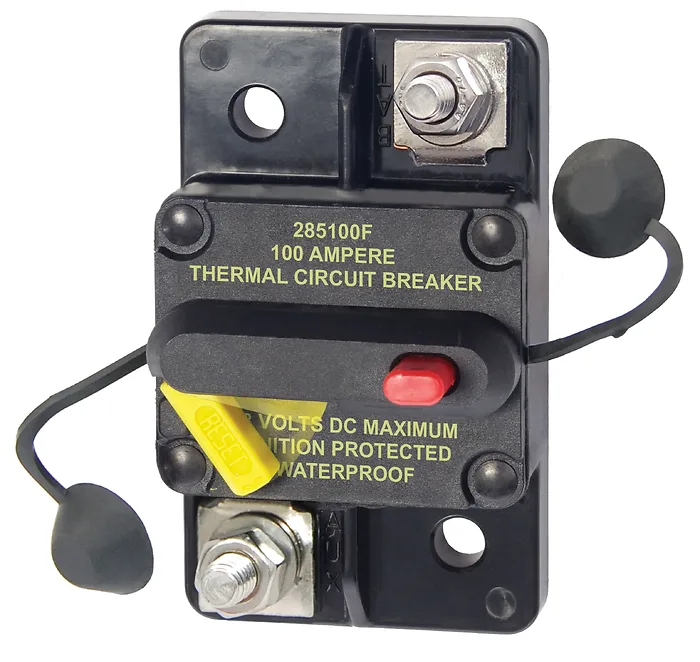

Blue Sea 285-Series 100 Amp Circuit Breaker Surface Mount

MFG No: 7187-BSS
SKU No: DHP691VRQW
UPC: 632085071875
MFG. Name: NAVICO GROUP AMERICAS LLC
Available: 12
Condition: New

$55.94


Blue Sea Systems 285-Series Circuit Breaker - Surface Mount 100A

Model: 7187-BSS
  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit*
  • Trip Free" - cannot be held closed after trip

* Do not use as a switch where high inrush currents are expected

Specifications
Amperage
100A
Maximum Voltage48V DC
MountingSurface Mount
Circuit Breaker TypeThermally responsive Bi-metal blade
Terminal Stud Torque50 in-lb (5.65 Nm)
Interrupt Capacity3000A @ 48V
Minimum Operating Temperature-40 deg C
Maximum Operating Temperature85 deg C
Circuit Breaker ClassType III - switchable/manual reset - trip free
Terminal StudM6 (accepts 1/4 in Ring Terminal)
"
  • Drop-in replacement for 185-Series Circuit Breakers
  • Visible reset lever indicates open condition
  • Ignition protected for safe marine installation
  • Weather resistant for durability in harsh environments
  • Combines switching and circuit protection functions
  • "Trip Free" design prevents holding closed after trip
  • Suitable for high inrush current applications
