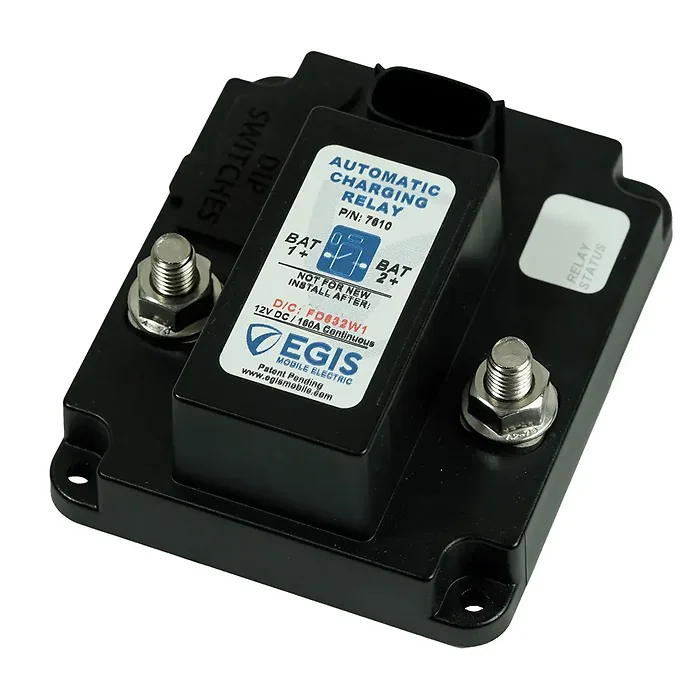

Egis 160A Programmable Automatic Charging Relay - 12V

This advanced Egis charging relay is capable of managing dual battery systems with a continuous current of 160A. It provides automatic and programmable features to prevent battery drain by sharing the charge between two batteries, ensuring they remain isolated when not connected to a charging source.

Applications:

• Ideal for installations with multiple engines or independent charging systems, utilizing two separate start or engine isolation inputs for optimal charging performance.
• Protects electrical systems by preventing operation if any connected battery has a shorted cell.

Specifications:

• Continuous Current (Amps): 160
• Voltage Range: 8-18 VDC
• Off-State Current Draw (mA): 1.3
• Interrupt Current (Amps): 240
• ACR Closing Voltage (VDC): 12.9-13.6
• ACR Opening Voltage (VDC): 12.1-12.8

Focal Features:

• Ultra-low power consumption (7-10 mA), ensuring batteries remain charged even during long periods of inactivity.
• Robust and straightforward installation with a sealed plug to prevent corrosion, including a Deutsch/Amphenol DTM connector harness.
• Start Assist input allows for maximum cranking amps via remote battery connections.
• Durable construction with high-temperature materials, thermal overload protection, and stainless steel hardware.
• Additional low-amp output for reporting device status or managing a secondary relay for off-grid charging needs.
