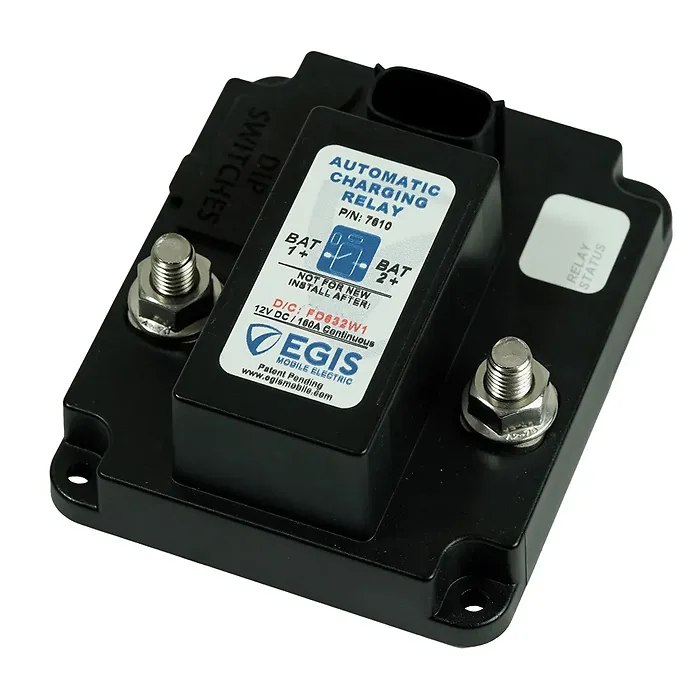

Egis 160A Automatic Charging Relay for Dual Battery Systems

This powerful 160A automatic charging relay is designed to optimize battery management by efficiently sharing charge between two batteries while keeping them isolated when no charging sources are available.

Applications:

• Ideal for multiple engine applications or independent charging systems, featuring two isolation inputs to manage charging performance effectively.
• Includes a protective feature that prevents system faults by locking out the relay if a shorted cell is detected in one of the batteries.

Specifications:

• Continuous Current Amps: 160
• Voltage Range (VDC): 16 – 36
• Off-State Current Draw (mA): 1.3
• Interrupt Current (Amps): 240
• AC Closing Voltage Range (VDC): 25.8-27.2
• AC Opening Voltage Range (VDC): 24.2-25.6

Focal Features:

• Top side dip switches for easy access programming without removing the unit, protected with a cover.
• Constructed with stainless steel self-locking hardware for corrosion resistance and durability.
• Includes a sealed Molex MX-150 connector to prevent corrosion and ensure secure connections.
• Standard with a Deutsch DT/AT connector harness, offering multiple connection options for versatility.
• LED diagnostics to show relay status: ON/OFF, under voltage, over voltage/temp, and output conditions.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

• Efficient power usage minimizes battery depletion during extended downtime.
• Robust installation with integrated sealed connectors to prevent corrosion.
• Manual battery connection option for enhanced cranking power.
• Built to withstand harsh conditions with thermal overload protection.
• Optional low-amp output for remote status reporting or auxiliary charging.
