Blue Sea ML-ACR Automatic Charging Relay with Manual Control 12vDC 500A

MFG No: 7622-BSS
SKU No: V793UC4PV6
UPC: 632085076221
MFG. Name: Blue Sea Systems
Available: 14
Condition: New

$219.08

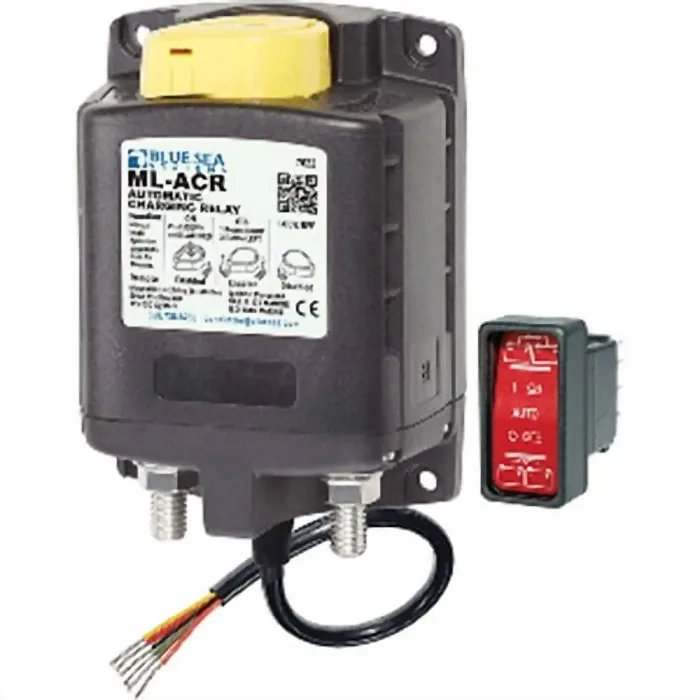

Blue Sea Systems ML-ACR Automatic Charging Relay with Manual Control - 12V DC 500A

Model: 7622-BSS
  • Automatically manages the charging of two large battery banks
  • Allows paralleling of battery banks for emergency starting
  • 500 Ampere continuous rating to support high-output alternators
  • Magnetic Latch (ML)-ACR draws very low current (<40mA to monitor terminal voltage) in the ON" or "OFF" states

  • Manual control switch for added safety during servicing
  • Includes ML-Series Remote Control Contura Switch (PN 2146)
  • 500 Ampere continuous rating for high performance
  • Very low current draw (<10 mA) in "ON" or "OFF" states
  • Configurable for temporary isolation during engine cranking
  • Protects sensitive electronics from engine noise
  • Senses charging on two battery banks simultaneously
  • Supports high-output alternators up to 500 Amps
  • LED output indicates battery status (combined, isolated, in lockout)
  • Durable 3/8"-16 tin-plated copper studs for corrosion resistance
  • 7/8" stud length to accept multiple cable terminals
  • Label recesses for clearer circuit management
  • High reliability with silver alloy contacts for switching
