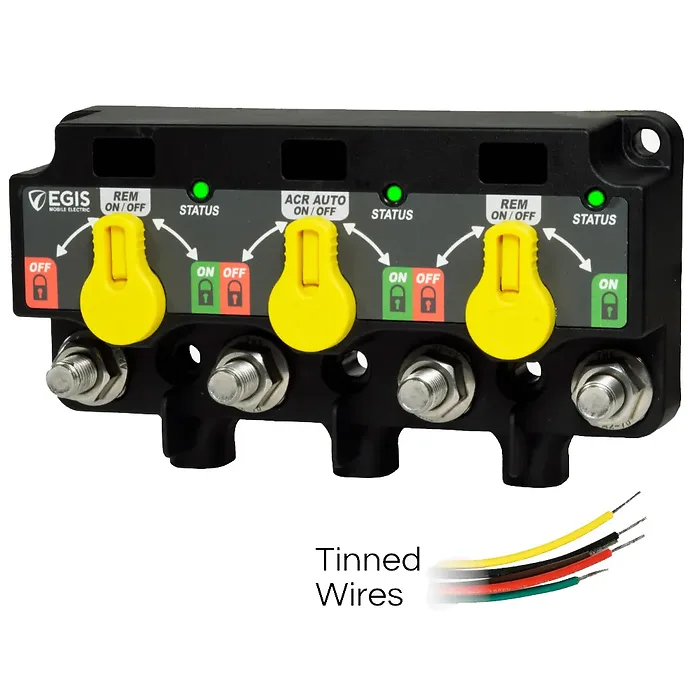

Egis XD Tri-Flex Relay System

The Egis XD Tri-Flex Relay System combines three powerful relays into a compact, space-saving module. This design enhances reliability and eliminates external linking cables, making it ideal for streamlining installation and minimizing disconnections from vibrations. With intuitive control options, users can easily manage relay states.

Applications:

• Effectively handles multi-battery switching and charge distribution; outer relays manage dual battery loads while the central relay automates charging for optimal performance.
• Perfect for setups with multiple automatic charging relays (ACRs) in one unit, especially for configurations with 3-4 batteries.
• Provides expansion possibilities through link and cross-link busbars to connect additional XD relays, suitable for standard 3 or 4 battery systems.

Key Features:

• Robust IP67/IP6K9K sealed construction ensuring adaptability for various mounting options and compatibility with high-temperature environments.
• Manual operation adds control and visibility into relay states for user convenience.
• Customizable settings via programmable dip switches tailored for OEMs and installers.
• Bi-stable solenoid technology leads to a significant 35-75% reduction in weight and space.
• Designed for effortless integration with competitive products utilizing DTM/ATM connector pins.
• Substantially reduces off-state current draw by 90-95%, leading to improved system efficiency.

• Front-facing LED status display with additional remote LED for immediate status indication.
• 3-position manual override offering users the ability to manually control each relay with lock positions.
• Weatherproof circuit label sheet for easy and accurate circuit identification.
• Protective terminal cover to prevent accidental short circuits from terminal studs and cable edges.
• Durable stainless hardware made from corrosion-resistant materials for long-lasting use.
• Easy dip switch configuration with a user guide for straightforward programming.
• Compact design that offers high amp capacity while taking up a smaller footprint compared to traditional alternatives.
• Integrated Gortex vents to manage internal pressure and inhibit moisture ingress.
