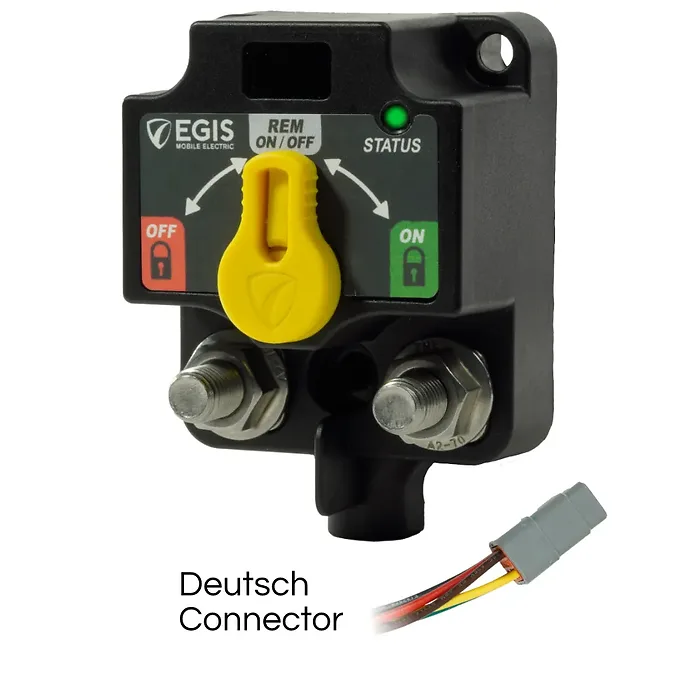

Egis XD Flex 2 Relay-ACR with Knobs - DTM Connector

This advanced Egis relay offers a compact solution, reducing mounting space and product weight by 35-75% through its innovative bi-stable solenoid design. It features expandable link and cross-link busbars for easy integration with additional XD relays and is compatible with both 2 and 3 battery systems using standard busbar interconnect accessories.

Applications:

• Superior alternative to traditional solenoids and remote battery switches; fully compatible with Blue Sea ML-solenoid and ML-remote battery switch products.
• Forward-facing input studs facilitate the easy connection of large wires, with a protective cover and label recesses for easy identification and anti-contact short protection.

Specifications:

• Total Continuous Current Amps: 500
• Max Cranking Current (Amps): 1500
• Mechanical Switching Life: 1,000,000 cycles
• Voltage Range (VDC): 8-36
• Off-State Current Draw (mA): 1.3
• State Change Current: 5A @ 12 VDC; 3A @ 24 VDC

• Built tough with IP67/IP6K9K sealed construction and high temperature materials, allowing for versatile mounting locations.
• User-friendly manual control enhances operational awareness of the relay state.
• Simple programmability via dip switches offers flexibility for OEMs and installers.

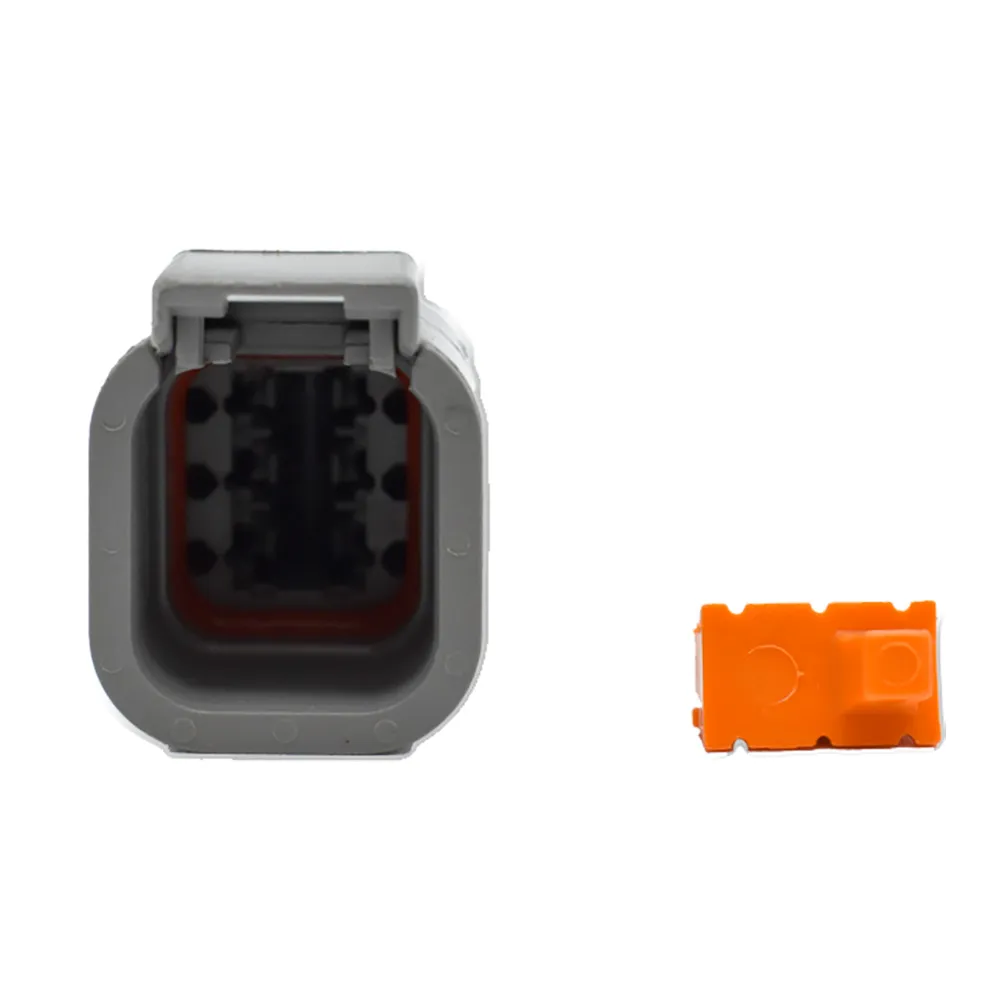

• Fully compatible with legacy products, featuring DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays.
• Significantly lower off-state current consumption compared to competitive products.
• Front-facing LED indicators for easy status monitoring, with a remote LED that mirrors the local device status.
• 3-position manual override for customizable control, with lock options for secure relay states.
• Includes a 40 Circuit Label Sheet for easy identification and organization of circuits.
• Protective cover safeguards terminal studs from potential short circuits.
• Constructed with stainless steel hardware to prevent corrosion.
• Programmable via dip switches, with an included configuration guide for user convenience.
• Compact design minimizes installation space while maintaining high amp ratings.
• Integrated Gortex vent ensures moisture control and longevity in harsh conditions.
