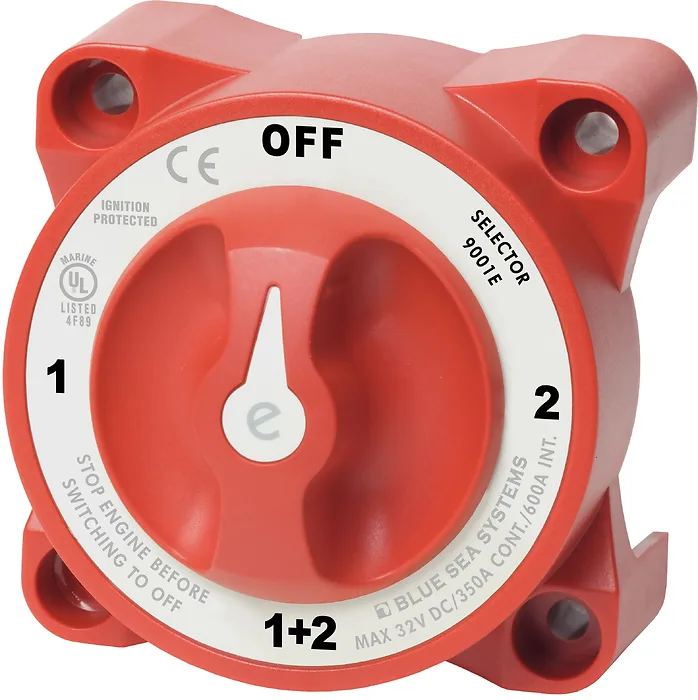

Blue Sea Systems e-Series Selector Battery Switch

• 350 Amps continuous rating for inboard gasoline or diesel engines.
• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Accepts up to 4/0 AWG battery cables
• Studs accepts 3/8 (M10) ring terminals
• 7/8 in (22mm) stud length accepts multiple cable terminals
• Blue Sea Systems one-piece terminal stud design never loosens over time
• Fits most Perko and Guest low amperage battery switch hole patterns
• Case design allows surface or rear panel mounting
• Tactile indicator conveys knob position by feel
• Waterproof - rated IP66 from water projected in powerful jets
• Ignition protected-safe for installation aboard gasoline powered boats
• Make-before-break contact design allows switching without power interruption

Switches isolated battery banks to all loads or combines battery banks to all loads

• Selector switch with 4 positions
• Red color for visibility
• Meets maximum voltage of 32V DC
• Continuous rating of 350A
• Intermittent rating of 600A (5 min)
• Cranking rating of 1200A for 30 seconds
• 2 battery inputs
• Cable clearance for 4/0 AWG cables at 1.10in (27.94 mm)
• Accepts 1/4" (M6) screws for mounting holes
• Tinned copper stud material for durability
• Terminal stud size of 3/8" - 16 (M10)
