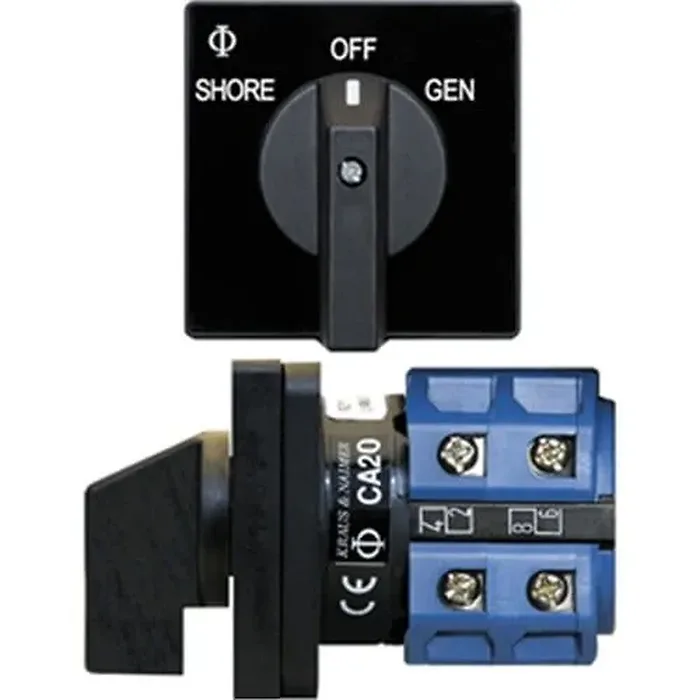

Blue Sea Rotary Switch 120VAC 30 Amp Off + 2 Position

MFG No: 9009-BSS
SKU No: EE5VKA2A6P
UPC: 632085090098
MFG. Name: NAVICO GROUP AMERICAS LLC
Available: 3
Condition: New

$128.41


Blue Sea Systems AC Rotary Switch - OFF + 2 Positions 120V AC 30A

Model: 9009-BSS
  • Switches 2 - 120 or 230 Volt AC sources
  • Compact solution when circuit protection is provided elsewhere
  • Allows connecting one of two different AC sources to one circuit
  • Mounts in panels up to 0.16 (4.00mm) thick
  • Mounts in panels up to 0.16 in (4.00mm) thick
  • Intuitive function - One hand operation
  • UL listed
Specifications
Positions
2 + OFF
Source Selection2
Nominal Voltage120v
Poles2
Load Circuits Out1
Maximum Amperage Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.30A
Maximum Voltage600V AC
Source In2
Dimensions hxwhd1.89in x 1.89in x 1.91in
"
