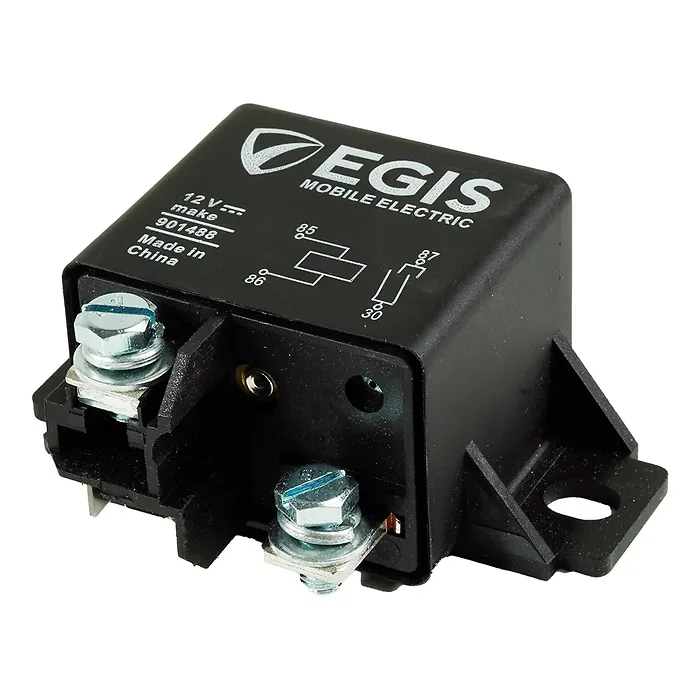

High-Performance Automotive Relay - 12V, 75A

The Egis 12V, 75-amp relay is designed specifically for automotive applications, providing exceptional electrical switching performance. Featuring bi-furcated contacts that enhance reliability and efficiency, this relay is ideal for demanding situations.

Applications:

• High intermittent amperage rating of 150 amps for short durations makes it ideal for temporary high-start-up amp draw applications.
• The bi-furcated contact design reduces contact bounce and enhances long-term reliability, minimizing heat buildup and contact wear.
• Offset input/output terminals coupled with an integrated divider design help prevent accidental shorts.
• With a temperature rating of 125 degrees C (257 degrees F), this relay is perfect for high-temperature environments like engine bays.

Specifications:

• Intermittent Current (@ 3 SEC): 150A
• Ambient Temperature Rating: -50 to 125 degrees C
• Max Continuous Current: 75A @ 23 degrees C
• Electrical Endurance: 100,000 cycles
• Initial Contact Resistance: 50 mOhm (6VDC)
• Operating Voltage Range: 8.8-16VDC

• Robust construction with IP54 ingress protection and reinforced mounting tabs for secure installation.
• Dual mounting holes on either side facilitate easy mounting with ¼-20” or M6 bolts/screws up to #14 size.
• Manufactured with high-quality materials for superior performance and longevity, rated for 100,000 electrical switching cycles.
• Enhanced vibration and shock resistance ensures reliability and readiness of electrical systems.
• Compact footprint is designed to fit into confined spaces, providing versatility for various installations.
• Shielded dual flat male terminal connectors ensure quick and secure wire connections, simplifying installation.
• Offset terminals and integrated divider tabs help mitigate accidental shorts during installation.
