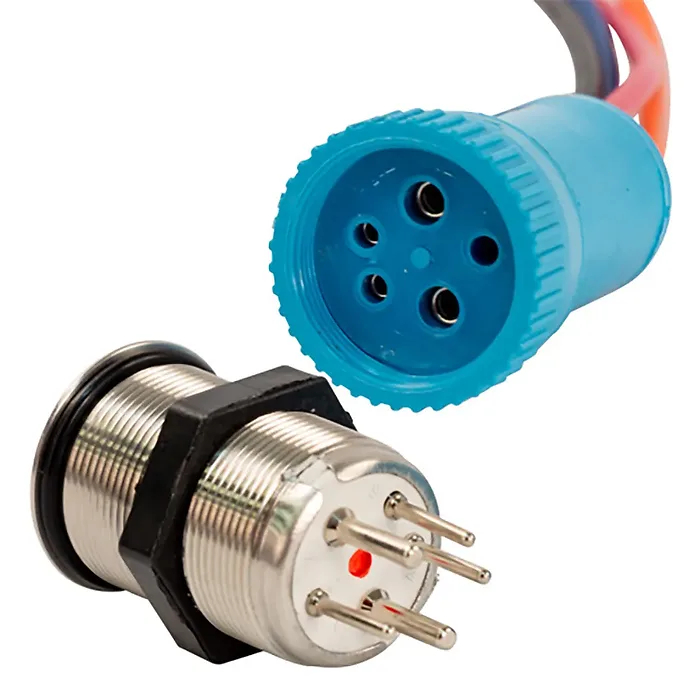

22mm Push Button Switch - Off/On/On Contact - LED Backlit

This sleek and durable stainless-steel plated push button is designed to enhance any dashboard with a modern look. Featuring an "Off-On-On" contact configuration, it delivers a reliable performance for a variety of applications.

With an impressive waterproof rating of IP69K, this switch is built for resilience against the elements. The backlit blue LED ensures visibility even in low-light conditions, changing to red to indicate when the function is activated.

Specifications:

• Function: Off-On-On (standard contact)
• Off/1st On: Blue/Green
• 2nd On: Red
• Switch Rating: 15A/12 – 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation Instructions:

For installation, create a 22mm hole in any material up to 6mm thick. Connect the three color-coded contacts for the switch and the two contacts for the LED indicator for seamless operation.

• 4 ft. lead connection
• IP69K waterproof rating
• Backlit with blue LED light
• Color-changing to red when activated
• Reliable stainless steel construction
