IP69K Waterproof 22mm Push Button Switch with LED

MFG No: 9059-1113-4
SKU No: Q5ICMXJCL8
MFG. Name: BlueWater
Available: 3
Condition: New

$57.03

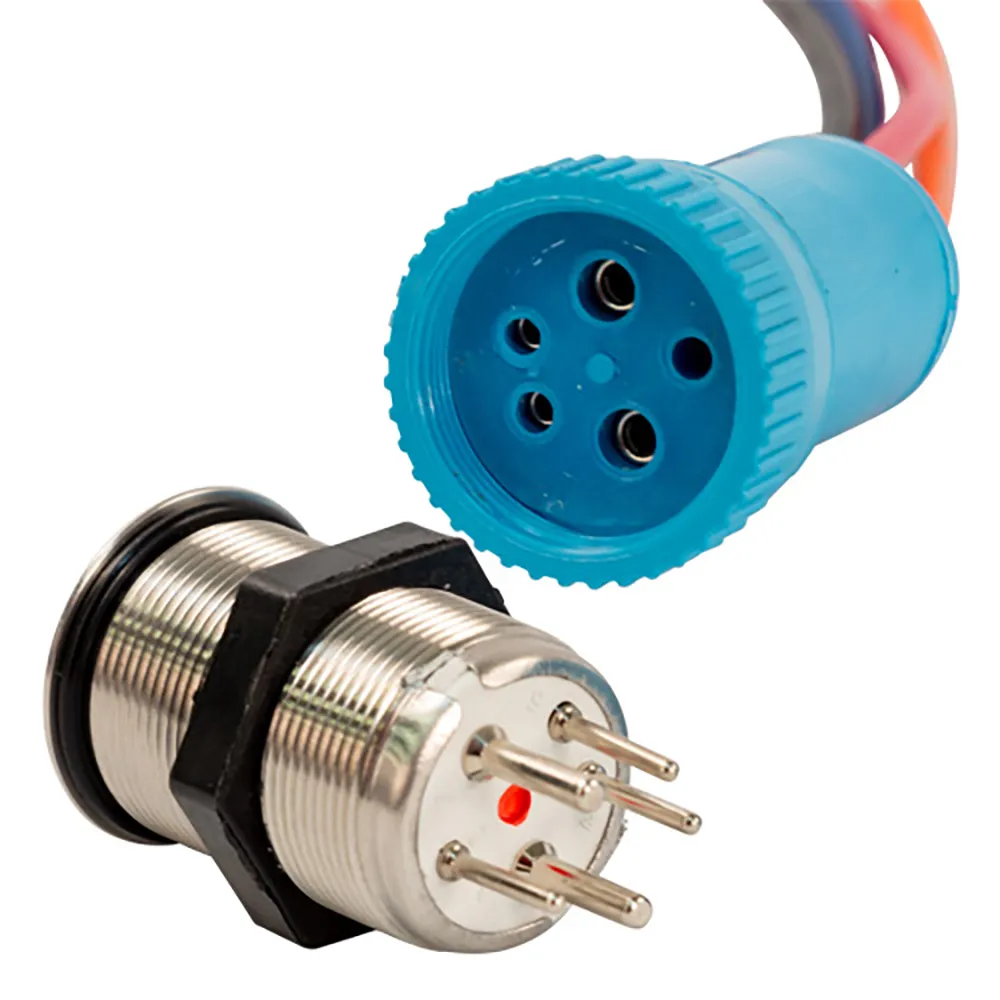

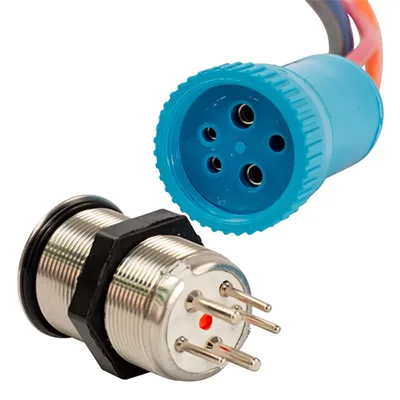

IP69K Waterproof 22mm Push Button Switch with LED

This durable push button switch features a stainless-steel plated design that adds a modern touch to any dashboard. It operates on a standard "Off/On" contact and includes a 4-foot lead for versatile installation.

The switch boasts a robust waterproof rating of IP69K, ensuring reliable performance even in harsh environments. It is backlit with a blue LED light for visibility at night, which changes to red to indicate when the function is activated.

Installation Instructions:

To install, drill a 22mm hole into any material up to 6mm thick. Connect the three color-coded contacts for the switch and the two contacts for the LED for complete functionality.


  • Modern stainless-steel plated design
  • IP69K waterproof rating
  • Standard Off/On contact type
  • Backlit with blue LED; red LED indicates activation
  • 4 ft. lead for flexible installation
  • Mechanical Life: 50,000 cycles
  • Electrical Life: 10,000 cycles
  • Switch Rating: 15A / 12 – 24VDC
