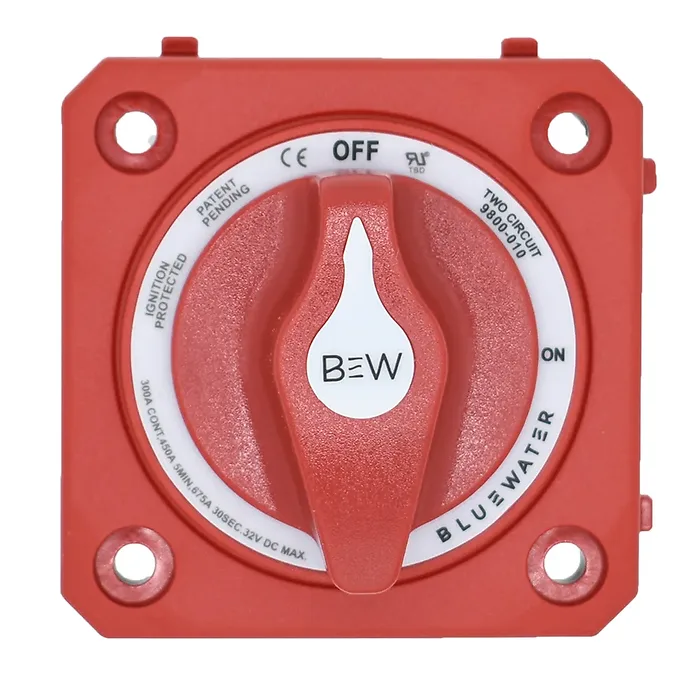

Red Dual Circuit Battery Switch - Panel Mount

This premium dual circuit battery switch allows for simultaneous control of two isolated circuits via a single action. It is perfect for applications necessitating independent power routing, such as separating house and engine batteries while eliminating the risk of cross-connection.

This switch is ignition-protected and safe for use on gasoline-powered boats, making it an excellent choice for both marine and RV systems. Its flexible design supports various mounting options, including surface, front panel, and rear panel mounting.

Engineered for reliability, it features 3/8” -16 tin-plated copper studs, providing superior conductivity and corrosion resistance, compatible with both 3/8” and M10 ring terminals. The 7/8” stud length ensures secure connections for multiple cable terminals.

Built from marine-grade, non-corrosive materials and encased in reinforced polycarbonate, this switch is also user-friendly, with tactile knob textures for easy position recognition by touch. It includes international ON/OFF legends and a clear ICON label set for effective circuit identification.

• Continuous Rating: 300 Amps DC
• Intermittent Rating: 450 Amps DC (5 min)
• Cranking Rating: 675 Amps DC (30 sec)
• Max Voltage: 32VDC
• Cable Size: 4/0 AWG
