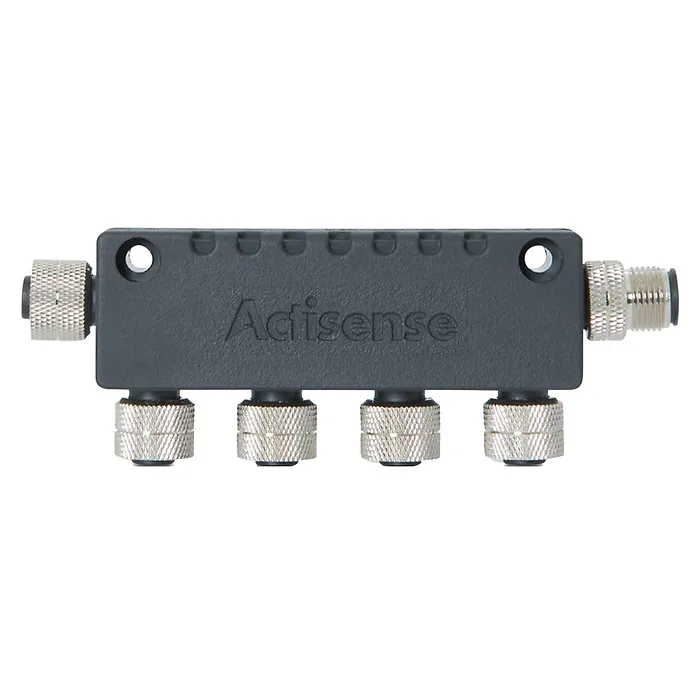

N2K Micro 4 Way T-Piece Connector

This Actisense 4 Way T-Piece Connector is designed for applications requiring multiple drops or 'ports' from the NMEA 2000 backbone. It simplifies installation—offering the convenience of a single T-Piece while utilizing less space and being more cost-effective than multiple individual T-pieces.

Developed with extensive expertise in interconnect technology and NMEA standards, the Actisense range ensures reliable and efficient connections.

Specifications:

• Rated Current: 4A
• Rated Voltage: 60V DC
• Male Contact: Brass, gold plated
• Female Contact: Phosphor bronze, gold plated
• Contact Carrier: PA66 (30% Glass filled), black
• Contact Polarization: Standard M12 - “A” - polarization
• Mating Thread: M12
• Screw Cap: Brass, nickel plated
• O-Ring Seal: Rubber, Black
• Housing: TPU, flame retardant to UL94V-0, Halogen Free
• Internal Housing Shield: Copper Foil
• Weight: 105g
• Protection: IP67 (when mated)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C

• NMEA 2000 Approved
• RoHS Compliant
