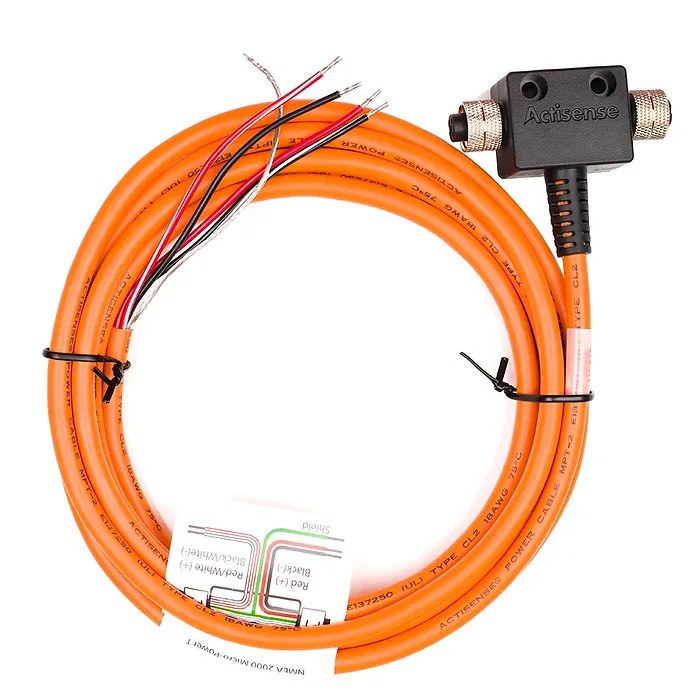

Actisense NMEA2000 Power T-Piece 3M

The Actisense A2K-MPT-2 offers a straightforward and secure approach to powering your NMEA 2000 network. Designed for ease of use, it features improved strain relief and micro-fit connectors that allow for 'plug and play' installations.

With two female connectors, this power T-piece is fully compatible with Devicenet standards. The UL certified, three-meter cable provides flexibility in installation and ensures a reliable connection.

Technical Specifications:

Electrical

• Rated Current - 4A (each feed)
• Rated Voltage - 60VDC

Mechanical

• Female Contact - Phosphor bronze, gold plated
• Contact Carrier - PA66 (30% Glass Filled), Black
• Contact Polarization - Standard M12 - “A” polarization
• Mating Thread - M12
• Screw Cap - Brass, nickel plated
• O-Ring Seal - Rubber, black
• Housing - PVC, black
• Cable Jacket Material - 0.8mm Nom. PVC, orange
• Cable Outer Diameter - 6.7mm ±0.254mm
• Cable Length - 3M
• Wire Length - 100mm (7mm stripped)
• Wire Jacket - PVC
• Wires - 18 AWG (stripped and tinned)
• Drain - 18 AWG (34-strand tinned copper)
• Shield - Al-mylar
• Weight - 290g

Approvals and Certifications

• Protection - IP67 (when mated)
• Operating Temperature - -20°C to +70°C
• Storage Temperature - -40°C to +85°C

• Simple and safe NMEA2000 power solution
• Improved strain relief for enhanced durability
• Compatible with Devicenet
• UL certified cable for reliability
• 3-meter length for installation flexibility
• IP67 rated for water and dust resistance
• Wide operating temperature range
