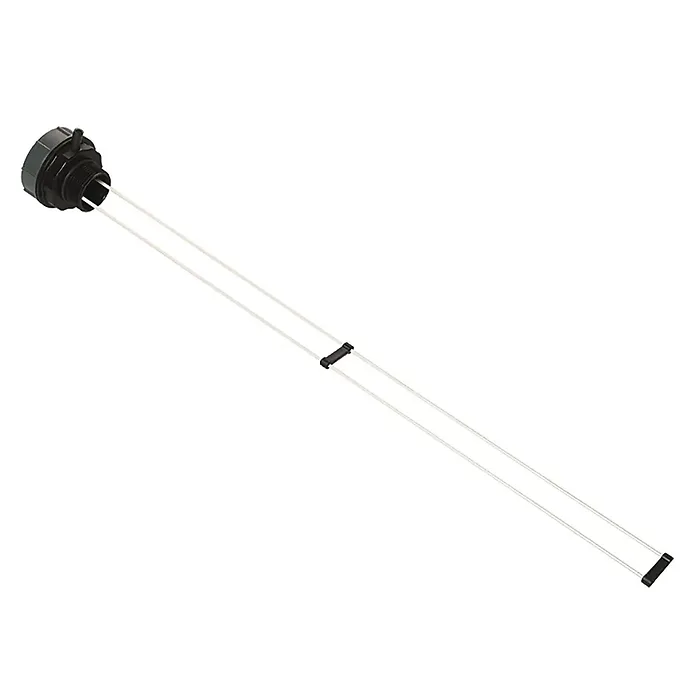

Veratron NMEA 2000 600mm Liquid Level Sensor

The Veratron NMEA 2000 Liquid Level Sensor is designed for precise fluid level monitoring, certified for drinking water—a first in the industry. This sensor operates on an NMEA 2000 network, with three models available for various tank depths from 200 mm to 1500 mm.

Utilizing advanced capacitive sensing technology, it offers accurate tank level measurements without the limitations of traditional reed sensors. The sensor is micro-adjustable to fit specific tank sizes, allowing for optimal performance in both fresh and waste water applications. This device facilitates effective monitoring and management of fluid levels across up to 4 tanks.

Installation is straightforward; the sensor connects directly to the NMEA backbone via its integrated Micro-C M12 5-pin connector, supplying nominal 12V power and enabling visibility of tank levels on any compatible display within the network.

With certifications for UL94, CE, REACH, and RoHS compliance, the NMEA 2000 Liquid Level Sensor is also rated IPX9K for durability in exposed situations.

• Flange Installation Kit included
• 300mm NMEA Pigtail Connection
• ACapacitive sensor technology for high accuracy
• Micro-adjustable for custom tank sizes
• Compatible with fresh and waste water
