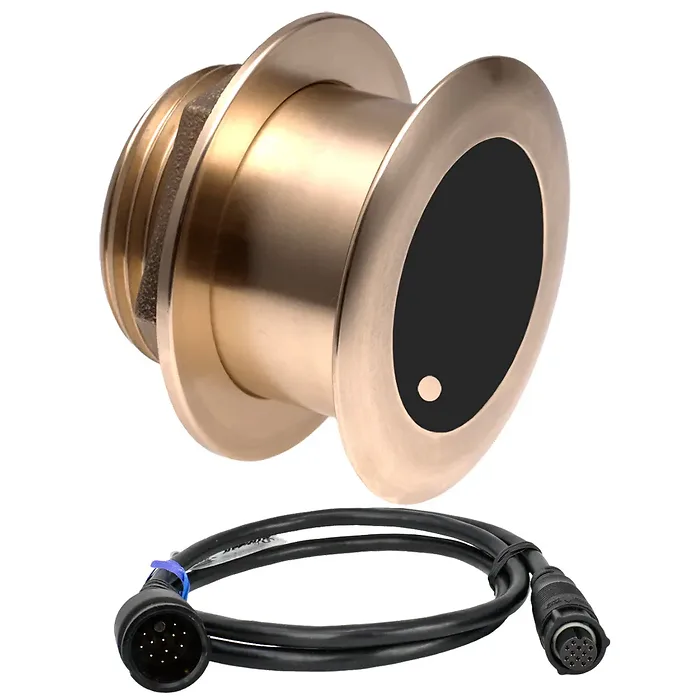

Airmar B175MW 1kW 20° Chirp Thru-Hull Transducer

The B175MW transducer elevates performance with its medium frequency (60-100 kHz) and ultra-wide beamwidth of 57-73° port-starboard and 16° average fore-aft. Designed for anglers targeting pelagic species in the upper water column, this transducer maximizes coverage beneath the vessel.

Featuring Airmar’s renowned Medium Ultra-Wide design, it provides excellent mid-depth performance and fish-target separation. When paired with other models like the B275LHW, anglers gain a comprehensive frequency range to engage with targets ranging from deep to shallow.

The B175MW Tilted Element Thru-hull is equipped with a 1 kW transducer housed in a popular Tilted Element case, featuring a ceramic element fixed at a 20° angle. Its nearly flush installation ensures optimal orientation of the ceramic element, enhancing echo returns to the transducer.

Features:

• Designed for hull deadrise from 16° to 24°
• 12 Pin Connector for Furuno TZTouch3 Displays
• Integrated depth and fast-response water-temperature sensors
• Capabilities include depth tracking down to 400 m (1,300')
• Medium frequency range of 60-100 kHz
• Ultra-wide beamwidth of 57° to 73° (port/starboard)
• 16° average beamwidth fore/aft
• 40 kHz of bandwidth from one transducer
• Excellent fish-target separation
• Durable bronze housing for various hull types
• Low-profile design ensures good resolution at speed
• Exclusive Xducer ID® technology
