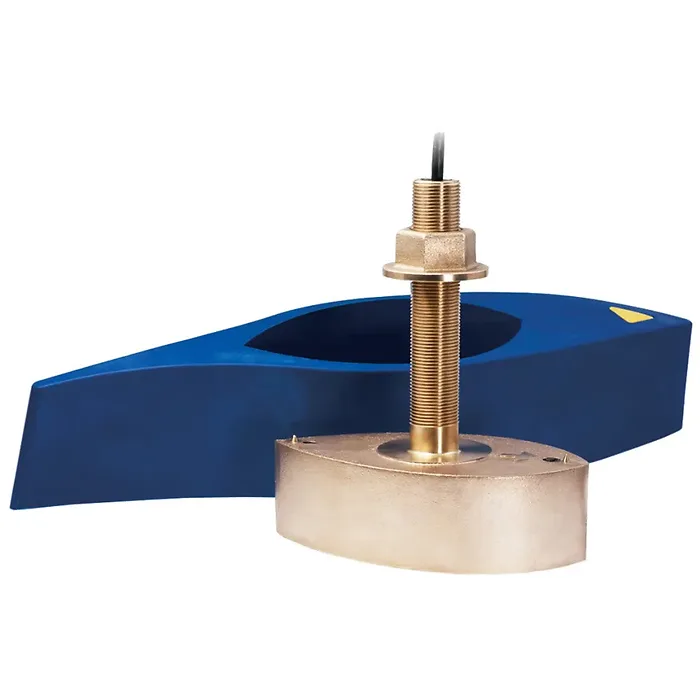

The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.
The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.
The included high-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Features:
Depth and fast-response water-temperature sensing
1 kW of power for great deep to mid-depth performance
Low frequency: 42 to 65 kHz
25° to 16° beamwidth
Maximum depth of 914 m (3000')
Medium frequency: 85 to 135 kHz
16° to 11° beamwidth
Maximum depth of 457 m (1500')
73 kHz of total bandwidth from one transducer
Covers popular fishing frequencies of 50, 88, and 107 kHz, plus everything else in the bandwidths
Bronze housing with High-performance Fairing for optimal high-speed performance
Also available as transom (TM265LM), pocket (PM265LM), cavity/welded-tank (CM265LM), and in-hull (M265LM) mounts
Patented Xducer ID® technology
Specifications:
Power Rating: 1 kW
Max Deadrise Angle: 20°
Housing: Bronze
Functions: Depth, Temperature
Hull Material: Fiberglass or wood
Max Vessel LOA: 8 m (25') and above
Usable Shaft Length: 121 mm (4.75")
Mounting Style: Thru-Hull with Fairing
Acoustic Window: Urethane
Common Use: Fishing, Commercial Fishing
Low Frequency: 42-65 kHz
Low Frequency Beamwidth: 25°-16°
Max Deadrise: Up to 20° with fairing
Max Depth: Low frequency- 914 m (3000'), Medium frequency- 457 m (1500')
Medium Frequency: 85-135 kHz
Medium Frequency Beamwidth: 16°-11°
Retractable housing: No
Single or Dual Frequency: CHIRP-Ready Dual-Band
Tilted Element: No
Weight: 7.3 kg (16 lbs.)
