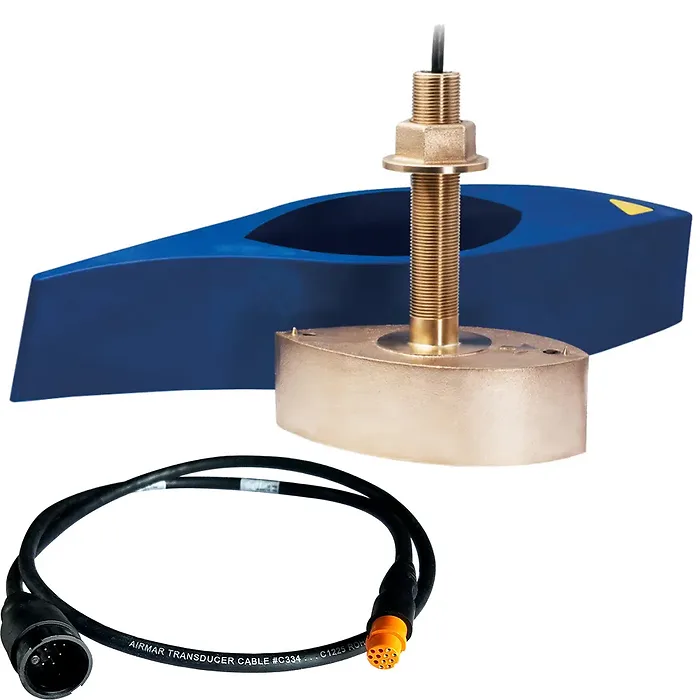

Airmar B275LH-W Chirp Thru-Hull Transducer for Garmin

The Airmar B275LH-W is designed to provide fishermen with expansive coverage underneath the boat, utilizing a wide-beam, low and high-frequency Chirp-ready technology. This transducer operates from 150 to 250 kHz with a fixed 25° beam, ensuring superior resolution and fish arch clarity on your display. With a consistently wide beam, it delivers twice the coverage compared to high-frequency, narrow-beam transducers.

Ideal for inshore and pelagic fishing, the B275LH-W allows for excellent performance down to 152 m (500') and supports deep-water fishing with its low-frequency band and 1 kW power. The included High-performance Fairing enhances broadband results at higher speeds.

• Garmin 12-Pin Mix & Match Cable for Chirp compatibility
• Depth and fast-response water-temperature sensing
• 1 kW power for exceptional deep-water performance
• Low frequency range: 42 to 65 kHz
• Fixed beamwidth from 25° to 16°
• Maximum depth capability of 914 m (3000')
• High frequency range: 150 to 250 kHz
• Constant beamwidth of 25°
• Maximum depth capability of 152 m (500')
• Offers 123 kHz total bandwidth
• Covers essential fishing frequencies of 50 and 200 kHz
• Optimized for shallow-water performance and fish-target separation
• Bronze housing with High-performance Fairing for optimal speed
• Also available in transom (TM275LHW) and pocket (PM275LHW) mounts
• Features patented Xducer ID® technology
