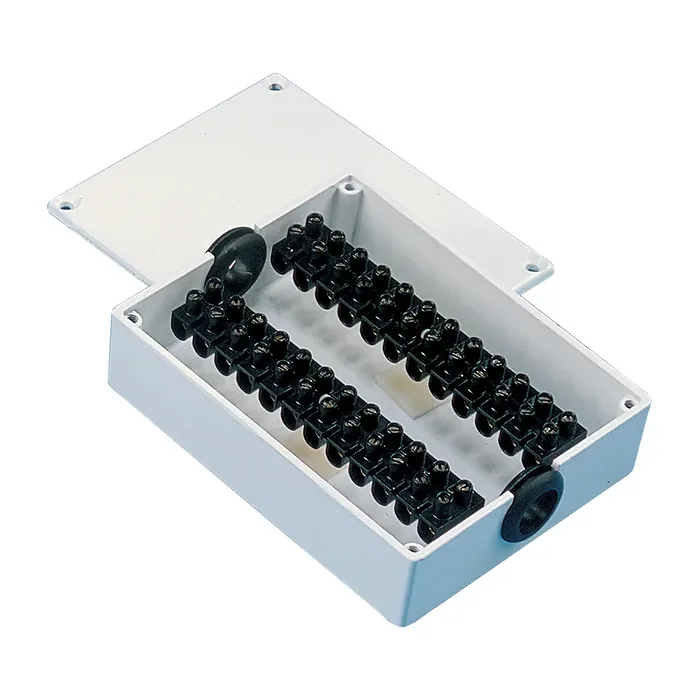

BX-3 Splashproof Junction Box

This junction box from the BX Series is specifically designed for secure and protected wiring connections, making it suitable for use in wheelhouses, below decks, and engine rooms. Its splashproof design ensures reliability in challenging environments.

Key Features:

• IP rating 54 – “Splashproof”
• Durable cast aluminum construction with a white enamel finish
• Metal housing minimizes electrical interference
• Easy wiring access via multiple grommeted cable entries
• Includes high-quality connector strips for a secure connection without the need for terminals

Specifications:

• Number of Connector Strips: 2
• Positions per Strip: 11
• Max Wire Gauge: 14
• Max Amps (per position): 10
• Cable Entries: 2
• Cable Diameter: 0.59 in.
• Dimensions (inches): 4.7 x 3.7 x 1.3
• Dimensions (cm): 11.9 x 9.4 x 3.3

• IP54 rated for splash resistance
• Rugged aluminum construction
• Reduces electrical interference
• Easy access for wiring through grommeted entries
• High-quality connectors for secure wiring
