The BZB Gear HDMI Over IP Extender allows seamless extension of HDMI video signals over IP networks. It supports both point to point and point to multi-point configurations, making it a versatile solution for various audio-visual applications. With compatibility for HDMI 1.4b and HDCP 1.4, this device ensures high-quality transmission of video resolutions up to 1920x1200 at 60Hz.

This extender utilizes advanced H.265 compression technology, providing efficient bandwidth utilization while maintaining superior video quality. It features comprehensive audio format support, including LPCM 2.0CH at 48KHz, alongside robust IR control options.

The compact metal enclosure provides durability, while the easy-to-use interfaces make installation straightforward. Ideal for use in classrooms, conference rooms, and professional AV setups, the BZB Gear HDMI Over IP Extender is your solution for high-performance HDMI extension.

• HDMI Compliance: HDMI 1.4b
• HDCP Compliance: HDCP 1.4
• Video Bandwidth: 10.2Gbps
• Video Resolution: 640x480@60Hz to 1920x1200@60Hz
• Audio Format Support: LPCM 2.0CH, 48KHz
• IR Frequency Range: 20KHz to 60KHz
• Compression Technology: H.265 for efficient bandwidth usage
• Switching Support: 1 GMP, DHCP compatible
• Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
• Color Depth: 8-bit
• ESD Protection: >8kV (Air-gap discharge), >4kV (Contact discharge)

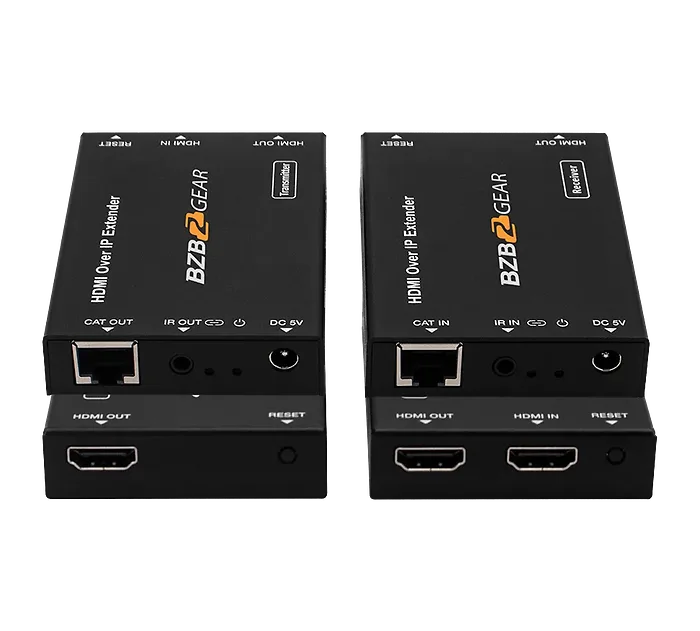

• Encoder Inputs: 1xHDMI Type A, Outputs: 1xHDMI Type A, IR OUT, CAT OUT
• Decoder Inputs: IR IN, CAT IN, Output: 1xHDMI Type A
• Durable Housing: Metal Enclosure
• Dimensions: 88mm (W) x 61.2mm (D) x 16.5mm (H)
• Weight: Encoder: 155g, Decoder: 150g
• Power Supply: AC100 - 240V, DC 5V/1A, CE/FCC/UL certified
• Power Consumption: Encoder: 1.5W, Decoder: 1.25W
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Relative Humidity: 20% to 90% RH (non-condensing)
